RADIO
REMOTE CONTROL
RC-R SERIES
|
|

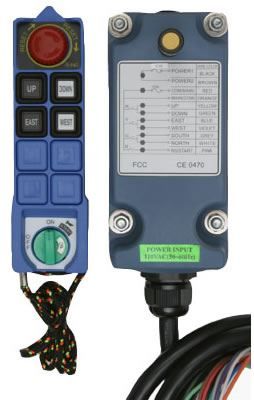

RC-2M2
& RC-3M1
This Series of Radio Controls are ideal for smaller, simpler
operations such as light-duty cranes and monorails.
The RC-2M2 Series Radio Control offers the user 2-step pushbuttons,
while the RC-3M1 Series Radio Control
has 1-step pushbuttons. Both wireless control systems operate
on exceptionally low power consumption (up to
three months on two AA batteries) and feature a user-friendly
design. Operating range for the remote system is
300+ feet. |
|
|
|
 |
|
General
Specifications
• Durable, robust IP 65 industrial casing
• New lightweight (250g) user friendly design
• Advanced RF circuitry design with over 4 billion ID codes
• Exceptionally low Power Consumption - up to 3 months
usage with 2 AA batteries
• Error free Hamming code technology
• Working temperature range from -45° to +80°C
• Long distance operation up to 100m
• Purposely designed for the control of high-vibration,
heavy-duty mobile and industrial equipment
• Remote ID Setting Technology allowing for instant maintenance
at site
• Multi-optional receiver input power. 48/110, 48/200,
110/220,
220/380 VAC ± 12-24V DC* |
|
|
|
©
RC-2M2: 4 pushbuttons with 2-step (Up, Down, East, West)
+ EMS + Start Key
© RC-3M1: 6 pushbuttons with 1-step (Up, Down, East, West,
North, South) + EMS + Start Key |
|
|
|
 |
RC-3M2
Series
The 3M2 Series Radio / Remote Control is a versatile System,
ideal for complex industrial applications. The
compact, 8-pushbutton Transmitter fits easily in the user's
hand. The 3M2 Series is a 3-motion, 2-speed radio,
suitable for most industrial applications. With a range of 300
feet, the 3M2 can accommodate larger applications
without compromising safety. |
|
|
|
|
|
Installation
of the 3M2 Series is very simple, and both AC and DC* voltage
configurations are available. As with all
OUR Controls products, the 3M2 Series comes with a standard
two-year Warranty against all manufacturer's defects. |
|
|
|
|
|
 |
|
General
Specifications
• Enclosure: IP65 (indoor/outdoor)
• Structure: Fiberglass
• Crystal-Based
• Both power source and output relays with fuses
• Synchronous transmission encoding and decoding
• Frequency: 310.0325 ~ 321.535 MHz
• Operating temperature: -30° - +75° C
• Relays: 10A/250V
• ID Code: 32 bit
• Response time = 65ms
• Range: 300 feet
• *AC Standard - Contact Us for DC Configuration |
|
|
|
|
|
Transmitter
Specifications
• 6.4" L x 1.9" W x 1.8" H
• 0.6 lbs.
• 2 AA size alkaline batteries
• 3-stage power indicator
• Synchronous transmission encoding and decoding
• Buzzer/Alarm
• Removable key (waterproof)
• Changeable push button symbols
• Shock resistant design
• Password power-on: 4 digits
• Normal power consumption: about 40mA |
|
|
|
Receiver
Specifications
• 6.6" L x 6.1" W x 3.5" H
• 3.1 lbs.
• Input: 110 VAC
• Alarm and signal light output
• Power source detector
• Anti-power interrupt circuit
• Shock resistant
• Enhanced watch-dog circuit
• 3 superheterodyne
• Frequency deviation tracing circuit |
|
|
|
|
|
RC-4M2
Series
The RC-4M2 Series Radio Control is capable of carrying out the
most complex of tasks with its 12 2-step push-
buttons. For instance, the RC-4M2 has the capability to remotely
operate cranes outfitted with two trolleys and
two hoists by means of its five-motion, two-speed versatility.
With a wireless range of over 300 feet and the ability
to carry out flawless operations in the harshest of industrial
conditions (-22° - 167° F), the RC-4M2 is ideal for
the
most extreme of circumstances. |
|
|
|
|
|
|
The
RC-4M2 series Remote Controls, with their advanced technological
design, easily satisfy the requirements of
diverse industries. All functions are readily customized to
suit YOUR equipment. |
|
|
|
|
|
|
The
RC-4M2 series Remote Controls advanced technology offer the
user small, lightweight yet exceptionally robust
Transmitters designed to reduce user fatigue, damage, wear and
tear. The Receivers also adopt this technology to
minimize "on-board" space requirements. |
|
|
|
|
|
|
The
RC-4M2 series Remote Controls ensure smooth operation under
severe environmental conditions, especially
where there is likely to be serious frequency interference and
large variations in temperature. |
|
|
|
|
|
|
 |
|
General
Specifications
• Enclosure: IP65
• Structure: Glass fiber
• Crystal Frequency Control
• Both power source and output relays with fuses
• Synchronous transmission encoding and decoding
• Changing frequency manual/auto
• Auto signal searching
• No. of functions & parameters setting > 57
• No. of self-diagnosis > 28
• No. of alarm > 28
• Frequency: 415 ~ 483MHz
• Operating temperature: --22° to +167° F
• Relays: 10A/250V
• ID Code: 32 bit
• Response time = 65ms
• Static > 15KV
• Surge > 4KV
• Field strength > 10V/m
• Range: 300 feet |
|
|
|
|
|
|
|
|
| Other
Specifications: |
|
Transmitter
Specifications
• 10.79" L x 3.03 " W x 1.65 " H
• about 1.21 lbs. (without batteries)
• 6 AA size alkaline/rechargeable batteries |
|
•
3-stage power indicator
• Buzzer/Alarm
• Removable key (waterproof)
• Changeable pushbutton symbols
•Shock resistant design
• Password power-on: 4 digits
• Output power = 10mW
• Normal power consumption: about 40mA
• Harmonic = 65dB
• Modulation = 2.5KHz
• Alarm and signal light output
• Power source detector
• Anti-power interrupt circuit
• Shock resistant
• Enhanced watch-dog circuit
• 3 superheterodyne
• Frequency deviation tracing circuit
• Sensitivity = -110dBm
• Adjacent channel restrain > 80dB |
|
|
|
|
|
|
Receiver
Specifications
• 9.96 " L x 10.51 " W x 5.91 " H
• about 6.62 lbs. (without cables)
• AC: 24V, 48/110/220, 110/220/380V
• DC: 14~40V |
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
PRICING
|
|
Catalog
No.
|
Description
|
Price
|
|
|
Three
motion Single Speed with Key On/Off, Emergency Stop, 2
Transmitters
and 1 Receiver |
$660
|
|
|
Two
Motion Two Speed for Monorail Application Key On/Off,
E-Stop,
2 Transmitters and 1 Receiver |
$720
|
|
|
Three
Motion Two Speed with Key On/Off E-Stop, 2 Transmitters
and
1 Receiver,
Separate Commons |
$870
|
|
|
Three
Motion Two Speed with Key On/Off Programmed for A / Both
/ B
Operation |
$890
|
|
|
Four
Motion Two Speed w/Emergency Stop, 2 Programmable Aux
Switches,
2 Transmitters and 1 Receiver |
$1,390
|
|
Radio
Remote Control Accessory and Replacement Parts
|
|
Catalog
No.
|
Description
|
Price
|
|
|
Two
Way Selector Switch for "Radio" / "Pendant"
Opeartion |
$160
|
|
|
Replacement
Magnetic Key for Series RC-3M2, and RC-3M2 A/B |
$30
|
|
|
Pulse
Alarm (requred by OSHA in most states) Specify 120 VAC
or 24 VDC |
$110
|
|
|
Spare
Transmitter for RC-3M2 and RC-3M2 A/B (specify channel
number) |
$320
|
|
|
Spare
Transmitter for RC-3M1
(specify channel number) |
$310
|
|
|
Spare
Transmitter for RC-2M2
(specify channel number) |
$310
|
|
|
Rubber
Protective Boot (specify model number) |
$55
|
|
|
Radio Remote
Control Systems, Cranes Monorails, 48/110, 48/200, 110/220,220/380VAC,
12-24V DC, Wireless Control Systems,
4 Pushbuttons with 2-step, and 6 Pushbuttons with 1-step from
your source for material handling equipment.
|
|
