Strong,
reliable and reusable totes are ideal for storage, distribution
and order picking. Attached tops are
permanently attached with steel hinges that interlock for stacking
strength and security. Stack for maximized
storage and nest when empty. Textured, non-slip bottom ensures
smooth conveying. Ergonomically designed
handles allow for easy lifting. Recessed lids ensure maximum
load stability. Padlock eye provides security
option allowing lids to be fastened and/or locked. Molded from
high density, FDA approved polyethylene.
Lids close securely to protect parts from dust or damage. Available
in Gray.

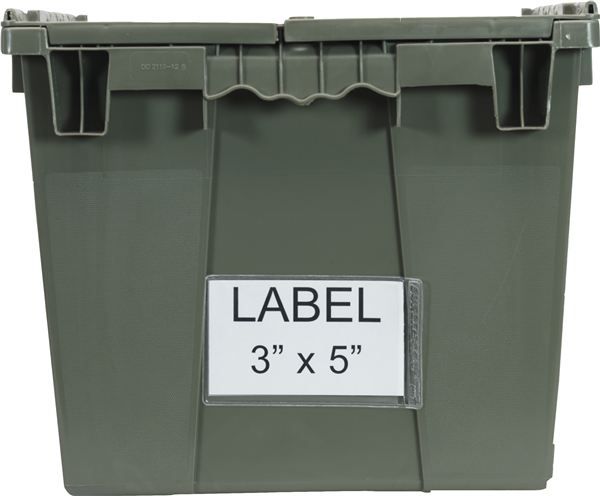

Distribution
container has an
optional 3" x 5" adhesive clear
label holder which attaches
securely for easy part identification. Model No: QDL-2115
Plastic
Dollies
Custom
Colors & Hot Stamping
Available - Call for Details
DLY-2415
Dolly with 1" Ledge,
available in Black. 1,000 lbs.
capacity. Interior Dimensions
24"L x 15"W Exterior
Dimensions 28"L x 18-1/2"W
Attached
Top Containers Dimensions
Model No.
Outside L x W
Inside L x W
Height
Top
Bottom
Top
Bottom
QDC2012-7
19
5/8" x 11 9/16"
17"
x 9 1/4"
17
9/16" x 9 13/16"
16
1/4" x 8 5/8"
7 1/2"
QDC2115-9
21
3/4" x 14 7/8"
18
15/16" x 13 1/8"
19
5/8" x 14"
18
3/8" x 12 9/16
9 5/8"
QDC2115-12
21
3/4" x 15"
18
9/16" x 12 5/8"
19
3/4" x 14"
18"
x 12 1/4"
12 3/4"
QDC2115-17
21
7/8" x 15 1/8"
18
3/8" x 12 7/8"
20"
x 14 1/2"
17
7/8" x 12 1/2"
17 1/4"
QDC2213-12
22
1/8" x 12 5/8"
18
7/8" x 10 7/8"
19
7/8" x 12"
18
1/2" x 10 1/8"
11 7/8"
QDC2420-12
23
7/8" x 19 3/8"
21
1/4" x 17 5/16"
22
1/4" x 18"
20
5/8" x 16 5/8"
12 1/2"
QDC2717-12
27
5/16" x 16 9/16"
24
1/4" x 14 1/2"
25
1/8" x 15 3/8"
23
3/8" x 13 3/4"
12 1/2"
QDC2515-14
25
3/8" x 16 1/4"
22
1/4" x 13 1/4"
23
1/8" x 14 1/4"
21
5/8" x 12 5/8"
13 3/4"
QDC2820-15
28
1/8" x 20 5/8"
25
3/8" x 18 3/4"
25
7/8" x 19 3/4"
25
1/8" x 18"
15 5/8"
Order Online
Click the button of the item you wish to purchase.
Our new
collapsable bulk box provides a practical approach
to large volume or large part material handling, storage and
transport. Used for heavy loads, components and even food
products, these reusable and returnable containers allow you
to
ship, handle, pick, store and distribute your products while
increasing productivity and profitability. Collapsable bulk
box
comes in a standard pallet size footprint measuring 48"L
x 45"W.
It can be collapsed down to a fraction of its full height in
seconds.
Bulk containers stack perfectly loaded or when folded down to
minimize storage space. They are designed to make the shipping
of your products faster, safer and less costly while providing
greater
protection. Two access drop doors are able to lie flush against
the
container allowing easy loading and unloading. Manufactured
from
High Density Polyethylene, this tough container provides superior
protection for products while being stored or in transit. Welded
base
provides greater strength while the reinforced fork openings
provide
easy lifting. Can withstand temperatures between -20° and
120°F.
Available in Black.
Performance
Features:
•
Plastic,
ergonomic latches for opening and collapsing
•
Superior
strength with low tare weight
•
High return
ratio: return 3 collapsed boxes for each bulk box
distributed
•
1,800 lb.
load capacity for standard usage
•
Large, flat
labeling area on all four sides
Fully
opened Bulk Box measures
48" L x 45" W x 34" H
Two
access drop doors allows
easy loading and unloading
Collapses
to a fraction of it's full height
Collapsible
Bulk Box Dimensions
• Overall Dimensions:
External 48"L x 45"W x 34"H,
Internal 44.5"L x 41.5"W x 28.2"H
• Usable Interior Height (Fill Line): 27.10"
• Access Drop Door - Cut Out: 30"W x 15.95"H
• Collapsed Height: 12.76"
• Nested Height: 11.77"
• Height of 9 Collapsed Bins (Stacked): 106.93"
• Fork Tunnel:
48" Side 11"W x 3.4"H, 45"
Side 11.38"W x 3.4"H
Easy
opening and collapsing
of Bulk Box's side walls
Order Online
Click the button of the item you wish to purchase.
Attached Top
Containers, Attached Lid Containers, Collapsible Bulk Storage,
Stacking Attached Top Containers, Nesting Attached
Lid Containers, Bulk Storage Containers, Collapsible Bulk
Crate, Plastic Collapsible Containers, and Collapsible Bulk
Box from
your source for material handling equipment.
