POWERED STACKERS 1,000 lb. CAPACITY
|
|
|
| POWER STACKER FEATURES: |
|
|
|
• Meets ANSI B56.10 specifications.
|
|
|
• Maximum lift capacity - 1,000 lbs.
|
|
| • Remote control, floor lock, and safety screen are standard on all models. |
|
| • With a minimally charged battery, unit can be used while recharging. |
|
| • Easy to read illuminated battery status voltmeter - no extra cost! |
|
|

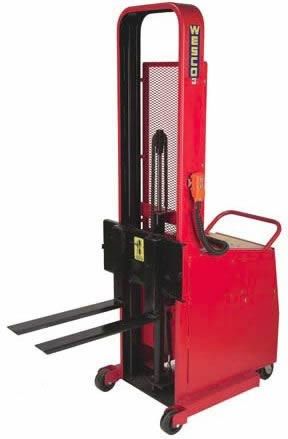

COUNTER-BALANCE MODEL
|
|
|
|
|
|
|
| FEATURES: |
|
|
 |
|
|
|
|
|
|
| • 1-year warranty. |
|
|
|
|
|
|
|
| • Battery and charger included. |
|
|
| • Applications include: |
|
|
|
- Loading and unloading trucks. |
|
|
|
|
- Positioning dies. |
|
|
|
|
- Feeding material to presses. |
|
|
|
| • 25" long forks standard. |
|
|
|
• 30" long fork models available,
850 lb. max. capacity. |
|
|
|
• Order enough weight kits for your
planned load. |
|
|
|
| • AC models not available. |
|
|
|
|
|
|
|
|
• Note: Counterbalance Stackers
require appropriate
counterweights. |
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
Standard features include:
• voltmeter
• remote control
• on/off switch |
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
| COUNTERBALANCE FORK MODELS PRICING AND SPECIFICATIONS |
| MODEL |
PART # |
LIFT
HEIGHT |
O/A
HEIGHT |
WEIGHT |
CAPACITY |
LOAD
CENTER |
PRICE |
|
|
261037 |
56" |
72" |
522 lbs. |
1,000 lbs. |
13" |
$6,340
|
|
|
261038 |
64" |
80" |
530 lbs. |
1,000 lbs. |
13" |
$6,487
|
|
|
261039 |
76" |
92" |
559 lbs. |
1,000 lbs. |
13" |
$6,708
|
|
Counterweights are not included and must be installed prior to use.
Order Required Counterweight Kit for your load. |
| PART # |
COUNTERWEIGHT |
STACKER LOAD CAPACITY |
PRICE |
|
|
200 lbs. |
334 lbs. |
$476
|
|
|
400 lbs. |
668 lbs. |
$951
|
|
|
600 lbs. |
1,000 lbs. |
$1,336
|
|
|
PLATFORM MODEL
|
|
|
|
|
|
|
|
 |
|
FEATURES: |
|
|
|
|
|
|
|
• 1-year warranty. |
|
|
• Lowered height 5.75" |
|
|
• Phenolic wheels on front and phenolic swivel
casters on rear. |
|
|
• Power DriveOption available:
Add "-PD" to end of Part #. |
|
|
|
|
|
|
|
• 110V AC models available.
To order add AC to the end of the battery
powered stacker part #. |
|
|
|
|
|
|
|
|
Example:
Battery Powered
#261024
110V AC Powered
#261024AC |
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
| PLATFORM MODELS SPECIFICATIONS AND PRICING |
| MODEL |
PART # |
LIFT
HEIGHT |
O/A
HEIGHT |
WEIGHT |
LEG ID/OD |
CAPACITY |
LOAD
CENTER |
PRICE |
| 24" X 24 PLATFORM SIZE |
|
|
261022 |
60" |
72" |
418 lbs. |
15"/21" |
1,000 lbs. |
15" |
$4,899
|
|
|
261023 |
68" |
80" |
428 lbs. |
15"/21" |
1,000 lbs. |
15" |
$4,813
|
|
|
261024 |
80" |
92" |
457 lbs. |
15"/21" |
1,000 lbs. |
15" |
$5,264
|
| 30" X 32 PLATFORM SIZE |
|
|
261025 |
60" |
72" |
457 lbs. |
25.5"/32" |
1,000 lbs. |
18" |
$5,486
|
|
|
261026 |
68" |
80" |
467 lbs. |
25.5"/32 |
1,000 lbs. |
18" |
$5,658
|
|
|
261027 |
80" |
92" |
492 lbs. |
25.5"/32 |
1,000 lbs. |
18" |
$5,967
|
|
|
FORK MODEL
|
|
|
|
|
|
|
 |
|
FEATURES: |
|
|
|
|
|
|
|
• 1-year warranty. |
|
|
• Battery and charger included. |
|
|
• Forks lower to floor on all models. |
|
|
• 5" phenolic wheels on front, 4" swivel on rear. |
|
|
|
|
|
|
|
• 110V AC models available. To order add AC to
the end of the battery powered stacker part #. |
|
|
|
|
|
|
|
|
Example:
Battery Powered
#261033
110V AC Powered
#261033AC |
|
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
PRICING FOR FORK MODELS
|
| STANDARD FORK MODELS |
| Part # |
261028 |
261029 |
261030 |
| Model # |
PESFL-56-25 |
PESFL-64-25 |
PESFL-76-25 |
| Lift height |
56" |
64" |
76" |
| Overall height |
72" |
80" |
92" |
| Weight |
452 lbs |
460 lbs |
489 lbs |
| Leg ID/OD |
15"/21" |
15"/21" |
15"/21" |
| Capacity |
1,000 lbs |
1,000 lbs |
1,000 lbs |
| Load Center |
15" |
15" |
15" |
| Price |
|
|
|
| STRADDLE FORK MODELS |
| Part # |
261031 |
261032 |
261033 |
| Model # |
PESFL-56-30S |
PESFL-64-30S |
PESFL-76-30S |
| Lift height |
56" |
64" |
76" |
| Overall height |
72" |
80" |
92" |
| Weight |
475 lbs |
483 lbs |
519 lbs |
| Leg ID/OD |
25.5"/32" |
25.5"/32" |
25.5"/32" |
| Capacity |
1,000 lbs |
1,000 lbs |
1,000 lbs |
| Load Center |
18" |
18" |
18" |
| Price |
|
|
|
|
|
ADJUSTABLE SPAN STRADDLE MODEL
|
|
|
|
|
|
|
 |
|
FEATURES: |
|
|
|
|
|
|
|
• 1-year warranty. |
|
|
• Battery and charger included. |
|
|
• Forks lower to floor on all models |
|
|
• Extra deep (40") straddle legs and forks for lifting
pallets. |
|
|
• Versatile adjustable span straddle legs can be set
from 34" to 50" inside dimension to handle most
standard pallets. |
|
|
• Power DriveOption available:
Add "-PD" to end of Part #. |
|
|
• 110V AC models available. To order add AC to
the end of the battery powered stacker part #. |
|
|
|
|
|
|
|
|
Example:
Battery Powered
#261035
110V AC Powered
#261035AC |
|
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
PRICING FOR ADJUSTABLE SPAN STRADDLE MODEL
|
| Part # |
261034 |
261035 |
261036 |
| Model # |
PASFL-56-40S |
PASFL-64-40S |
PASFL-76-40S |
| Lift height |
56" |
64" |
76" |
| Overall height |
72" |
80" |
92" |
| Weight |
510 lbs |
518 lbs |
554 lbs |
| Straddle legs ID/OD |
34" to 50" |
34" to 50" |
34" to 50" |
| Capacity |
1,000 lbs |
1,000 lbs |
1,000 lbs |
| Load Center |
20" |
20" |
20" |
| Price |
|
|
|
|
|
| Optional Power Drive System for Fork and Platform Stackers |
|
|
|
|
|
|
|
|
|
|
 |
|
• Variable speed, steerable power drive system allows a single
user to easily control forward and reverse movement of stacker.
• Simple to use finger-tip controls are built into steering handle.
• 180° hinged design allows precision steering in confined spaces.
• Red emergency stop button.
• Spring-loaded mechanism automatically compensates for uneven
floors ensuring drive wheels maintain constant contact with floor.
• Two maintenance-free sealed batteries provide plenty of power
for propulsion and lift.
• 1,000 - 2,000 lb. capacities.
• Automatic emergency safety switch instantly reverses direction
if control post comes in contact with obstacle. |
|
|
|
|
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
Easy fingertip controls. |
|
High torque motor drive. |
|
|
Model #
PESPL-80-2424-PD
1,000 lb. capacity
platform model with
80 lift height |
|
|
|
|
|
|
|
|
|
|
|
Battery Powered System
provides both propulsion and lift!
Eliminates the stress and strain of lifting and transporting
heavy loads. All Wesco power lift stackers can be ordered as
power drive models (except for telescoping models). All other
operating specifications are the same as equivalent power
lift-only models. To order, simply add "–PD" to the end of
the Model #. |
|
|
|
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
PRICING FOR FOR OPTIONAL POWER DRIVE SYSTEM
|
|
MODEL
|
PART #
|
Weight
|
Price
|
|
Counter Balance Models - 1000 lb. Cap.
|
|
|
261037-PD
|
717
|
$10,921
|
|
|
261038-PD
|
734
|
$11,510
|
|
|
261039-PD
|
771
|
$11,182
|
|
Counter Balance Models - 850 lb. Capacity - 30" forks
|
|
|
261096-PD
|
728
|
$11,708
|
|
|
261097-PD
|
742
|
$11,749
|
|
|
261098-PD
|
779
|
$12,484
|
|
24" x 24" Platform Models
|
|
|
261022-PD
|
578
|
$9,186
|
|
|
261023-PD
|
588
|
$9,327
|
|
|
261024-PD
|
617
|
$10,370
|
|
30" x 32" Platform Models
|
|
|
261025-PD
|
564
|
$10,042
|
|
|
261026-PD
|
587
|
$10,601
|
|
|
261027-PD
|
612
|
$10,296
|
|
Standard Fork Models
|
|
|
261028-PD
|
612
|
$9,407
|
|
|
261029-PD
|
620
|
$9,538
|
|
|
261030-PD
|
649
|
$9,793
|
|
Straddle Fork Models
|
|
|
261031-PD
|
602
|
$9,875
|
|
|
261032-PD
|
616
|
$10,056
|
|
|
261033-PD
|
625
|
$10,894
|
|
Adjustable Straddle Models
|
|
|
261034-PD
|
675
|
$11,026
|
|
|
261035-PD
|
678
|
$10,736
|
|
|
261036-PD
|
714
|
$11,020
|
|
|
