Unique performance, convenience and
safety features are built into every Lift
Master Boom. Fabricated from structural
steel with welding to meet AWS creates a
rugged and durable boom that will provide
long term service. Telescopic units extend to
144" and come with an infinitely adjustable
locking screw (except orbit booms which
features a spring loaded detent). Fork
pockets for 4,000 pound capacity models
measure 7½"W x 2½"H usable on 24"
centers. Usable fork pockets are 7¼"W x
2¼"H for 6,000 and 8,000 pound capacity
option. A 36" safety restraint secures the
boom to the fork truck for safe operation.
Each unit includes two lifting hooks. |
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
PRICING FOR LIFT MASTER BOOMS
|
| Model No. |
Description |
Overall
Height |
Overall
Extended
Length |
Uniform
Cap. |
Net Wt.
(lbs.) |
Price
ea. |
| TELESCOPING STYLE |
| LM-1T-4-24 |
Lift Master One |
26" |
153" |
4,000 |
418 |
$1,985.00
|
| LM-OBT-4-24 |
Orbit Boom |
28" |
147" |
4,000 |
416 |
$2,782.68
|
| LM-HRT-4-24 |
High-Rise Boom |
80" |
94" |
4,000 |
875 |
$3,957.55
|
| LM-EBT-4-24 |
Economy Boom |
13" |
153" |
4,000 |
370 |
$1,388.20
|
| LM-F15-4-24 |
Fixed 15 Degrees |
24" |
146" |
4,000 |
410 |
$1,636.62
|
| LM-1T-6-24 |
Lift Master One |
26" |
153" |
6,000 |
456 |
$2,697.00
|
| LM-OBT-6-24 |
Orbit Boom |
28" |
147" |
6,000 |
458 |
$3,485.27
|
| LM-HRT-6-24 |
High-Rise Boom |
80" |
94" |
6,000 |
949 |
$4,301.57
|
| LM-EBT-6-24 |
Economy Boom |
13" |
153" |
6,000 |
443 |
$2,046.05
|
| LM-1T-8-24 |
Lift Master One |
27" |
153" |
8,000 |
565 |
$3,349.00
|

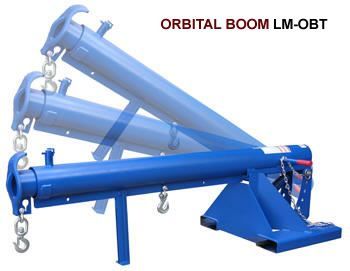

| LM-OBT-8-24 |
Orbit Boom |
29" |
146" |
8,000 |
734 |
$4,760.92
|
| LM-EBT-8-24 |
Economy Boom |
12" |
152" |
8,000 |
568 |
$2,629.83
|
| NON-TELESCOPING STYLE |
| LM-1NT-4-24 |
Lift Master One |
25" |
82" |
4,000 |
403 |
$1,705.40
|
| LM-OBNT-4-24 |
Orbit Boom |
27" |
81" |
4,000 |
558 |
$2,410.18
|
| LM-HRNT-4-24 |
High-Rise Boom |
79" |
51" |
4,000 |
627 |
$2,577.12
|
| LM-EBNT-4-24 |
Economy Boom |
13" |
82" |
4,000 |
258 |
$1,068.48
|
| LM-1NT-6-24 |
Lift Master One |
25" |
82" |
6,000 |
478 |
$2,410.18
|
| LM-OBNT-6-24 |
Orbit Boom |
27" |
81" |
6,000 |
628 |
$2,987.08
|
| LM-HRNT-6-24 |
High-Rise Boom |
79" |
51" |
6,000 |
697 |
$3,198.03
|
| LM-EBNT-6-24 |
Economy Boom |
13" |
82" |
6,000 |
291 |
$1,695.93
|
| LM-1NT-8-24 |
Lift Master One |
24" |
80" |
8,000 |
595 |
$3,054.82
|
| LM-OBNT-8-24 |
Orbit Boom |
26" |
80" |
8,000 |
792 |
$4,455.52
|
| LM-EBNT-8-24 |
Economy Boom |
12" |
81" |
8,000 |
620 |
$2,265.27
|
|
| Larger Fork Pockets 8 1/4"w x 4 1/4"h (inside dimensions), model LM-FP, $447.20 |
|
 |
|
 |
|
 |
|
SHORTY LIFT MASTER BOOMS
|
|
|
|
|
|
 |
|
Short boom length is ideal for tight areas. Choose
either telescoping or non-telescoping design.
Includes built-in fork pockets, safety restraint
and two lifting hooks. Overall width is 32", 38",
and 44". Steel construction. |
|
|
|
• Unique design converts fork trucks into over-
head lifting cranes
• Fork pockets with safety strap attach & secure
boom to fork truck
• Robotically welded construction provides
precision and durability
• Operations & capacity sticker provide user
instructions and safety |
|
|
|
|
|
|
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
PRICING FOR SHORTY LIFT MASTER BOOMS
|
| Model No. |
Description |
Overall
Height |
Overall
Extended
Length |
Uniform
Cap. |
Net Wt.
(lbs.) |
Price
ea. |
| LMS-EBT-46-4 |
Telescoping |
13" |
53 7/8" to 94 3/8" |
4,000 |
248 |
$1,480.03
|
| LMS-EBT-46-6 |
Telescoping |
13" |
53 7/8" to 94 3/8" |
6,000 |
280 |
$2,150.07
|
| LMS-EBT-46-8 |
Telescoping |
12" |
52 1/2" to 93" |
8,000 |
430 |
$2,763.35
|
| LMS-EBNT-40-4 |
Non-Telescoping |
13" |
50 7/8" |
4,000 |
190 |
$1,146.18
|
| LMS-EBNT-40-6 |
Non-Telescoping |
13" |
50 7/8" |
6,000 |
230 |
$1,813.67
|
| LMS-EBNT-40-8 |
Non-Telescoping |
12" |
49 1/2" |
8,000 |
380 |
$2,426.97
|
|
|
HOOK PLATES
|
|
|
|
|
 |
|
The Lift-Master Hook Plate enables any fork truck to maximize
safety while lifting a load using chains, cables or ropes. The safety
chain and clasp are used to secure the Hook Plate to the fork truck,
preventing it from sliding off the end of the forks. Fork openings are
6-1/4"W x 1-3/4"H. The LM-HP-4 is constructed of 3/4" hot rolled
steel. Additional 6,000 pounds capacity option is available for
handling heavier loads (model number LM-HP-6). Consult fork
truck owners manual for capacities before purchasing.
|
|
|
|
|
 |
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
PRICING FOR HOOK PLATES
|
| Model No. |
Hook Type |
Height
w/o Hook |
Overall
Width |
Uniform
Cap. |
Net Wt.
(lbs.) |
Price ea. |
| LM-HP4-S |
Swivel |
6" |
24" |
4,000 |
26 |
$228.50
|
| LM-HP4-R |
Rigid |
6" |
24" |
4,000 |
26 |
$217.00
|
| LM-HP6-S |
Swivel |
6" |
24" |
6,000 |
27 |
$271.60
|
|
|
