1/8 Ton Dual speed Elect Chain Hoist-230V-UL Rated

$4,488.31

20 foot lift

*Images may or may not be your exact model. Images are for reference only.

Made To Order
SKU
GECH-1/8-D-32/8-230-20-UL

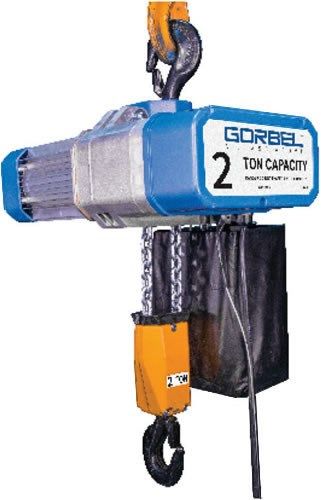

main product photo

GS SERIES HOISTS
jib crane gantry crane
Did you mean
Gorbel Jib Cranes		 Did you mean
Gorbel Gantry Cranes
SEE BELOW
FOR PRICES
Features & Benefits
• Capacities from 1/8 to 5 ton.
• Compact body design perfect for any work area and is
ideal for low headroom applications.
• Easy installation and relocation.
• All components from gears to case are fabricated at a
single location for superior quality control.
• Available in a variety of three phase configurations as
well as 115-1-60.
• Suspension plates provide firm attachment with Work
Station Crane trolleys and I or W beams.
• Totally enclosed, fan cooled motor.
• Tested in accordance with ASME as well as FEM/ISO.
• Smooth, quiet operation.
A Electric Chain Hoist is the perfect complement to your
Work Station Crane, Jib Crane, Gantry Crane, or Cleve-
land Tramrail System. Rely on the name that has meant
superior performance at every level to provide you with a
complete, reliable lifting system, exactly when you need it.
By adding chain hoists to the offering, we offer the most
convenient delivery and installation in the industry.
Our hoist line offers a wide range of models in different
speeds and capacities to meet your needs. Our rugged
construction makes them ideal for both high production
environments and those applications requiring only
periodic lifting and positioning.
Pendant Handle
 Ergonomic control pendant requires
low operator force and is equipped
complete with E-stop.
Limit Switch
Modular upper and lower limit switches
designed for durable operation.
GS hoist line offers a wide range of models in different speeds and capacities to best meet your needs. Our rugged
construction makes them ideal for both high production environments and those applications requiring only periodic
lifting and positioning.
• The compact body design makes it the perfect dimension for any work area and makes it an ideal hoist for low
headroom applications. Plus, the smaller size lends itself to easy installation and relocation
• All components from gears to case are fabricated at a single location for superior quality control
• Available in a variety of three phase configurations as well as 115-1-60
• Capacities from 1/8 to 5 tons to meet the needs of users in a wide range of industries
• Can be used with Work Station Crane trolleys or equipped with trolleys for S Beams and W Beams
• Direct acting upper and lower limit switches
• Tested in accordance with ASME as well as FEM/ISO
• Ideal for both high production environments and those applications requiring only periodic lifting and positioning
• Two-year warranty
Technical Overview
Hoist Dimensions
Hoist Type
Chain Dimension
(mm x mm)
A
in (mm)
B
in (mm)
B ext.¹
in (mm)
C
in (mm)
C ext.¹
in (mm)
Z
in (mm)
020/01, 020/53, 020/57
4 x 12
8.4 (212)
7.6 (192)
8.7 (220)
5.4 (137)
021/51, 021/53
4 x 12
8.4 (212)
7.6 (192)
8.7 (220)
5.4 (137)
030/54
5.2 x 15
8.4 (212)
7.6 (192)
8.7 (220)
5.4 (137)
050/02
5.2 x 15
10.5 (266)
9.2 (232)
10.8 (274)
6.5 (163)
070/51, 070/61
7.2 x 21
10.5 (266)
9.2 (232)
10.8 (274)
6.7 (168)
071/54, 071/55, 071/58
7.2 x 21
10.5 (266)
9.2 (232)
10.8 (274)
14.0 (354)
6.7 (168)
090/55
9 x 27
14.1 (358)
11.2 (283)
14.3 (362)
8.6 (217)
091/51, 091/59
9 x 27
14.1 (358)
11.2 (283)
13.4 (338)
14.3 (362)
16.3 (412)
8.6 (217)
110/52
11.3 x 31
14.1 (358)
11.2 (283)
14.5 (366)
9.4 (237)
111/52, 111/56
11.3 x 31
14.1 (358)
11.2 (283)
16.4 (416)
9.4 (237)

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths
How to order your hoist…
Select a hoist model from the single speed or dual speed price chart based on your capacity and speed
requirements. Now select your hoist suspension type. Your options are rigid top hook, single hole plate
suspension, or double hole plate suspension. You must match up your hoist Type with your Compatible
Hoist Type suspension. The Type is listed in both charts. To add a trolley to a single or double hole
suspension plate simply match up the hoist Type with the Compatible Hoist Type trolley in the same
capacity as the hoist.
Electric Chain Hoist Model Number
GECH - 1/8 - D - 32/8 - RH - 460 - 10 - 1 - C
[1] [2] [3] [4] [5] [6] [7] [8]
[1] Capacity in Tons (1/8, 1/4, 1/2, 1, 1 1/2, 2, 3, 4, 5)
[2] Hoist Control Speed ((S)ingle, (D)ual) - Price Chart Specific
[3] Hoisting Speed (Published)
[4] Suspension ((SSP) Single Hole Suspension Plate, (DSP) Double Hole Suspension Plate, (RH) Rigid Hook)
[5] Voltage (115, 230, 460, 575)
[6] Lift Height (10, 15, 20)
[7] Number of Falls (1, 2) - Hoist Model Number Specific
[8] Chain Container ((C)anvas, (P)lastic)
PRICES FOR SINGLE SPEED ELECTRIC CHAIN HOISTS
Model
No.
Base
Model
Type
Voltage
(VAC)
Amp
Draw
Lift
Speed
(fpm)
# of
Falls
Motor
HP
Head-
room
(in)
Wt. for
10' Lift
10' Lift
Price
15' lift
Prices
20' Lift
Prices
Load
Chain
Per Ft.
PB
Cord
Per Ft.
1/8 Ton Capacity
GECH-1/8-S-16-460-
94500
020/57
460-3-60
0.6
16
1
0.4
14.5
49#
GECH-1/8-S-16-230-
94800
020/57
230-3-60
1.3
16
1
0.4
14.5
50#
1/4 Ton Capacity
GECH-1/4-S-8-460-
94500
020/57
460-3-60
0.6
8
2
0.4
16.25
55#
GECH-1/4-S-24-460-
94502
020/53
460-3-60
1.3
24
1
0.87
14.5
49#
GECH-1/4-S-32-115-
94501
020/01
115-1-60
6.5
32
1
0.48
14.5
50#
GECH-1/4-S-8-230-
94800
020/57
230-3-60
1.3
8
2
0.4
16.25
55#
GECH-1/4-S-24-230-
94802
020/53
230-3-60
2.9
24
1
0.87
14.5
50#
1/2 Ton Capacity
GECH-1/2-S-12-460-
94502
020/53
460-3-60
1.3
12
2
0.87
16.25
55#
GECH-1/2-S-16-460-
94504
030/54
460-3-60
1.1
16
1
0.6
15.13
54#
GECH-1/2-S-40-460-
94510
070/51
460-3-60
2.4
40
1
1.74
16.25
102#
GECH-1/2-S-16-115-
94501
020/01
115-1-60
6.5
16
2
0.48
16.25
55#
GECH-1/2-S-32-115-
94511
050/02
115-1-60
20
32
1
1.5
16.25
88#
GECH-1/2-S-12-230-
94802
020/53
230-3-60
2.9
12
2
0.87
16.25
55#
GECH-1/2-S-16-230-
94804
030/54
230-3-60
2.2
16
1
0.6
15.13
54#
GECH-1/2-S-40-230-
94810
070/51
230-3-60
4.9
40
1
1.74
16.25
102#
1 Ton Capacity
GECH-1-S-8-460-
94504
030/54
460-3-60
1.1
8
2
0.6
17.13
63#
GECH-1-S-16-460-
94506
070/61
460-3-60
1.9
16
1
1.22
16.25
102#
GECH-1-S-20-460-
94510
070/51
460-3-60
2.4
20
2
1.74
20.25
114#
GECH-1-S-16-115-
94511
050/02
115-1-60
20
16
2
1.5
17.13
97#
GECH-1-S-8-230-
94804
030/54
230-3-60
2.2
8
2
0.6
17.13
63#
GECH-1-S-16-230-
94806
070/61
230-3-60
1.9
16
1
1.22
102#
GECH-1-S-20-230-
94810
070/51
230-3-60
4.9
20
2
1.74
20.25
114#
1 1/2 Ton Capacity
GECH-1 1/2-S-32-460-
94508
090/55
460-3-60
6.5
32
1
3.54
20.18
187#
2 Ton Capacity
GECH-2-S-8-460-
94506
070/61
460-3-60
1.9
8
2
1.22
20.25
114#
GECH-2-S-8-230-
94506
070/61
230-3-60
1.9
8
2
1.22
20.25
114#
2 1/2 Ton Capacity
GECH-2 1/2-S-36-460-
94509
110/52
460-3-60
10.7
36
1
6.53
29.06
271#
3 Ton Capacity
GECH-3-S-16-460-
94508
090/55
460-3-60
6.5
16
2
3.54
24.44
218#
5 Ton Capacity
GECH-5-S-20-460-
94509
110/52
460-3-60
10.7
20
2
6.53
29.06
310#

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

How to order your hoist…
Select a hoist model from the single speed or dual speed price chart based on your capacity and speed
requirements. Now select your hoist suspension type. Your options are rigid top hook, single hole plate
suspension, or double hole plate suspension. You must match up your hoist Type with your Compatible
Hoist Type suspension. The Type is listed in both charts. To add a trolley to a single or double hole
suspension plate simply match up the hoist Type with the Compatible Hoist Type trolley in the same
capacity as the hoist.
Electric Chain Hoist Model Number
GECH - 1/8 - D - 32/8 - RH - 460 - 10 - 1 - C
[1] [2] [3] [4] [5] [6] [7] [8]
[1] Capacity in Tons (1/8, 1/4, 1/2, 1, 1 1/2, 2, 3, 4, 5)
[2] Hoist Control Speed ((S)ingle, (D)ual) - Price Chart Specific
[3] Hoisting Speed (Published)
[4] Suspension ((SSP) Single Hole Suspension Plate, (DSP) Double Hole Suspension Plate, (RH) Rigid Hook)
[5] Voltage (115, 230, 460, 575)
[6] Lift Height (10, 15, 20)
[7] Number of Falls (1, 2) - Hoist Model Number Specific
[8] Chain Container ((C)anvas, (P)lastic)
PRICES FOR DUAL SPEED ELECTRIC CHAIN HOISTS
Model
No.
Base
Model
Type
Voltage
(VAC)
Amp
Draw
Lift
Speed
(fpm)
# of
Falls
Motor
HP
Head-
room
(in)
Wt. for
10' Lift
10' Lift
Price
15' lift
Prices
20' Lift
Prices
Load
Chain
Per Ft.
PB
Cord
Per Ft.
1/8 Ton Capacity
GECH-1/8-D-32/8-460-
94550
021/53
460-3-60
1.3
32/8
1
0.52
14.5
49#
GECH-1/8-D-32/8-230-
94850
021/53
230-3-60
2.7
32/8
1
0.52
14.5
49#
GECH-1/8-D-32/8-230-
94870
021/53
230-3-60
2.7
32/8
1
0.52
49#
1/4 Ton Capacity
GECH-1/4-D-16/4-460-
94550
021/53
460-3-60
1.3
16/4
2
0.52
16.25
54#
GECH-1/4-D-32/8-460-
94551
021/51
460-3-60
1.7
32/8
1
0.52
14.5
49#
GECH-1/4-D-16/4-230-
94850
021/53
230-3-60
2.7
16/4
2
0.52
14.5
54#
GECH-1/4-D-32/8-230-
94851
021/51
230-3-60
2.3
32/8
1
0.52
14.5
49#
GECH-1/4-D-16/4-230-
94870
021/53
230-3-60
2.7
16/4
2
0.52
54#
GECH-1/4-D-32/8-230-
94871
021/51
230-3-60
2.3
32/8
1
0.52
49#
1/2 Ton Capacity
GECH-1/2-D-16/4-460-
94551
021/51
460-3-60
1.7
16/4
2
0.52
16.25
54#
GECH-1/2-D-32/8-460-
94552
071/54
460-3-60
2
32/8
1
1.5
16.25
114#
GECH-1/2-D-48/12-460-
94555
071/58
460-3-60
3.8
48/12
1
1.77
16.25
127#
GECH-1/2-D-32/8-460-
94553
071/54
460-3-60
2
32/8
1
1.5
16.25
113#
GECH-1/2-D-32/8-575-
94554
071/54
575-3-60
2.2
32/8
1
1.5
16.25
113#
GECH-1/2-D-16/4-230-
94851
021/51
230-3-60
2.3
16/4
2
0.52
14.5
54#
GECH-1/2-D-48/12-230-
94855
071/58
230-3-60
6.2
48/12
1
1.77
16.25
127#
GECH-1/2-D-16/4-230-
94871
021/51
230-3-60
2.3
16/4
2
0.52
14.5
54#
GECH-1/2-D-48/12-230-
94875
071/58
230-3-60
6.2
48/12
1
1.77
16.25
127#
1 Ton Capacity
GECH-1-D-16/4-460-
94552
071/54
460-3-60
2
16/4
2
1.5
20.25
127#
GECH-1-D-24/6-460-
94555
071/58
460-3-60
3.7
24/6
2
1.77
20.25
140#
GECH-1-D-24/6-460-
94556
071/55
460-3-60
3.7
24/6
1
1.77
16.25
114#
GECH-1-D-32/8-460-
94557
091/51
460-3-60
5.4
32/8
1
2.94
24.44
182#
GECH-1-D-16/4-460-
94553
071/54
460-3-60
2
16/4
2
1.5
20.25
126#
GECH-1-D-32/8-460-
94558
091/51
460-3-60
5.4
32/8
1
2.94
20.19
182#
GECH-1-D-16/4-575-
94554
071/54
575-3-60
2.2
16/4
2
1.5
20.25
126#
GECH-1-D-32/8-575-
94559
091/51
575-3-60
3.7
32/8
1
2.94
20.19
182#
GECH-1-D-24/6-230-
94855
071/58
230-3-60
6.2
24/6
2
1.77
20.25
140#
GECH-1-D-24/6-230-
94856
071/55
230-3-60
5.2
24/6
1
1.77
16.25
114#
GECH-1-D-32/8-230-
94861
091/51
230-3-60
9.3
32/8
1
2.94
20.19
182#
GECH-1-D-24/6-230-
94875
071/58
230-3-60
6.2
24/6
2
1.77
20.25
140#
GECH-1-D-24/6-230-
94876
071/55
230-3-60
5.2
24/6
1
1.77
16.25
114#
GECH-1-D-32/8-230-
94881
091/51
230-3-60
9.3
32/8
1
2.94
20.19
182#
1 1/2 Ton Capacity
GECH-1 1/2-D-24/6-460-
94563
091/59
460-3-60
7.1
24/6
1
4.89
20.19
261#
GECH-1 1/2-D-24/6-230-
94863
091/59
230-3-60
15
24/6
1
4.89
20.19
262#
GECH-1 1/2-D-24/6-230-
94883
091/59
230-3-60
15
24/6
1
4.89
20.19
262#
2 Ton Capacity
GECH-2-D-12/3-460-
94556
071/55
460-3-60
3.7
12/3
2
1.77
20.25
127#
GECH-2-D-16/4-460-
94557
091/51
460-3-60
5.4
16/4
2
2.94
24.44
203#
GECH-2-D-32/8-460-
94564
111/56
460-3-60
7.1
32/8
1
4.89
24.06
318#
GECH-2-D-16/4-460-
94558
091/51
460-3-60
5.4
16/4
2
2.94
24.44
202#
GECH-2-D-16/4-575-
94559
091/51
575-3-60
3.7
16/4
2
2.94
24.44
203#
GECH-2-D-12/3-230-
94856
071/55
230-3-60
5.2
12/3
2
1.77
20.25
127#
GECH-2-D-16/4-230-
94861
091/51
230-3-60
9.3
16/4
2
2.94
24.44
203#
GECH-2-D-12/3-230-
94876
071/55
230-3-60
5.2
12/3
2
1.77
20.25
127#
GECH-2-D-16/4-230-
94881
091/51
230-3-60
9.3
16/4
2
2.94
24.44
203#
2 1/2 Ton Capacity
GECH-2 1/2-D-36/10-460-
94565
111/52
460-3-60
16
36/10
1
7.07
29.06
369#
GECH-2 1/2-D-36/10-575-
94566
111/52
575-3-60
8.8
36/10
1
7.07
29.06
369#
GECH-2 1/2-D-36/10-230-
94865
111/52
230-3-60
27.8
36/10
1
7.07
29.06
369#
GECH-2 1/2-D-36/10-230-
94885
111/52
230-3-60
27.8
36/10
1
7.07
29.06
369#
3 Ton Capacity
GECH-3-D-12/3-460-
94563
091/59
460-3-60
7.1
12/3
2
4.89
24.44
292#
GECH-3-D-12/3-230-
94863
091/59
230-3-60
15
12/3
2
4.89
24.44
293#
GECH-3-D-12/3-230-
94883
091/59
230-3-60
15
12/3
2
4.89
24.44
293#
4 Ton Capacity
GECH-4-D-16/4-460-
94564
111/56
460-3-60
7.1
16/4
2
4.89
29.06
369#
GECH-4-D-16/4-230-
94864
111/56
230-3-60
7.1
16/4
2
4.89
29.06
369#
5 Ton Capacity
GECH-5-D-18/4-460-
94565
111/52
460-3-60
16
18/4
2
7.07
29.06
369#
GECH-5-D-18/4-575-
94566
111/52
575-3-60
8.8
18/4
2
7.07
29.06
369#
GECH-5-D-18/4-230-
94865
111/52
230-3-60
27.8
18/4
2
7.07
29.06
369#
GECH-5-D-18/4-230-
94885
111/52
230-3-60
27.8
18/4
2
7.07
29.06
369#
Low Headroom Applications?
Choose a Suspension Plate with your Hoist
Our single and double hole suspension plates are the perfect option when headroom is an issue. Our suspension plates
are designed for easy installation on the hoist and easy attachment to the trolley.
Single Hole Suspension Plate
Double Hole Suspension Plate
When ordering a hoist with a work station crane, the hoist comes fully equipped
with a single hole suspension for quick attachment to the trolley. For jibs, the double
hole suspension matches perfectly with the trolley to provide a secure fit for the
hoist. If you plan on moving your hoist among various locations regularly, a rigid
upper hook is readily available.
Rigid Upper Hook Suspension

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

Prices For Single Hole Suspension Plate
Prices For Rigid Upper Hook Suspension
Part No.
Compatible Hoist Types
Weight
Prices
94640
020-030
2#
94641-20
070/071
3#
94642-20
090/091
5#
94643
110/111
10#
Part No.
Compatible Hoist Types
Weight
Prices
94630
020-030
5#
94631
070/071
7#
94632
090/091
16#
94633
110/111
22#
Prices For Double Hole Suspension Plate
Part No.
Compatible Hoist Types
Weight
Prices
94650
020-030
3#
94655-030
