Stainless
Steel Series - 3/8", 1/2", 3/4", 1"
I.D.
Stainless
steel hose reels will increase the life of expensive chemical
fluid transfer and wash down hoses. By properly storing hose
when
not in use, occupational safety will improve by eliminating
the tripping
hazard of unstored hose and sanitation will improve.
Stainless
steel hose reels are ideal for food processing, pre-rinse,
wash down, chemical transfer and industrial solvent handling.
Also
suitable for coastal, offshore onboard ship in marine applications
where the harsh environment of salt water spray requires the
use
of stainless steel hose reels. Swivels include Viton® "O"
rings.
Buna seals are available for water applications by adding
a -B at the end of the model number.
Manual
Crank Reels Note: The Series HS models include
aluminum hubs and bronze bushings.
COMPACT
- Great for areas where space is
critical
FEATURES
Full-flow stainless steel shaft and swivel assures maximum
product delivery. Exception: Series 80000-
aluminum fluid
path.
Heavy duty brackets to eliminate bending due to angular hose
pull
Banded drive spring gives smooth automatic hose retrieval
Multi-position guide arm permits wall, floor, ceiling, pit or
truck
mounting
Nylon guide rollers
reduce hose
drag and abrasion
Pos-i-latch will maintain the
desired working length of hose.
Mechanism assures a positive
latch of the hose
All reels are permanently factory
lubricated

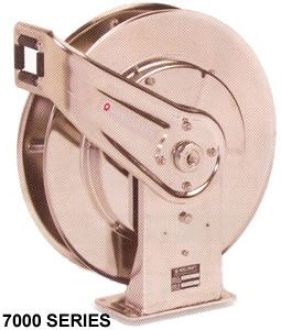

7000 Series offers weatherproof
gasketed spring motor, assures
maximum service life
GENERAL
USE - Many versatile applications
in corrosive or sanitary
environments.
APPLICATIONS
•
Restaurants
•
Car Washes
•
Laboratories
•
Dairies
•
Marinas
•
Grocery Stores
•
Photo Finishing
•
Meat Packing Plants
•
Chemical Plants
•
Printing Industry
•
Pharmaceutical
•
Food Processing
•
Ships
HEAVY
DUTY
*Series
80000 & D80000 stainless
reels have an aluminum fluid path
and may not be suitable for all
applications. The -S models include
stainless latch parts and fluid path (OLS-S).
DIMENSIONS
5000 O
7000 O
80000
D80000
HS18000 M
in
mm
in
mm
in
mm
in
mm
in
mm
A
14 1/2
368
20 1/4
514
25 3/8
645
25 3/8
645
19
483
B
13 3/4
348
19
483
24
610
24 1/8
613
20
508
C
9 3/4
248
7 7/8
200
10
254
10 1/2
267
15
381
D
2 1/2
64
3 7/8
98
6
153
7 7/8
199
10
253
E
6
152
7
178
10 1/2
267
14 1/4
362
16 1/4
413
F
3/8" NPTF (F)
1/2" NPTF (F)
1/2" NPTF (F)
3/4" NPTF (F)
1/2" NPTF (F)
3/4" NPTF (F)
1" NPTF (F)
Series
5000 has four 5/16" (8mm) diameter mounting holes. Series
7000, 80000 &
D80000 has four 1/2" (13mm) diameter mounting holes.
Series HS 18000 has four 7/16" (11mm) diameter mounting
holes. Series 80000 &
D80000 inlet matches recommended hose ID
Order Online
Click the button of the item you wish to purchase.
Adjustable
hose bumpers are solid molded rubber assuring a long life and
nonslip grip. Hose bumpers allow the desired length of hose
to be
permanently stored outside the reel. Hose bumpers are included
on the reels
purchased with hose. Reels purchased without hose do not include
the hose
bumper. When ordering, advise the part number, reel model and
the hose ID
and OD
Order Online
Click the button of the item you wish to purchase.
A
flexible hose connection must be used between the hose reel
inlet and
the source of supply to prevent possible misalignment and binding
or
warranty is void. The inlet size of reel series 4000 O, 5000
O and
5000 E is 3/8" (9.5 mm) NPTF (F), 7000 O & 7000 E is
1/2"
(12.7 mm) NPTF (F), D8000 O and D8000 E is 1/2" (12.7 mm)
NPTF (F) depending on hose size. Please furnish the following
infor-
mation when ordering: Part number-product and pressure to be
handled.
Other sizes available as well.
