Heavy Duty Reels

$800.00

Low pressure air/water reels with hose.

* Images may or may not be your exact model.  Images are for reference only.

SKU
7650ELP

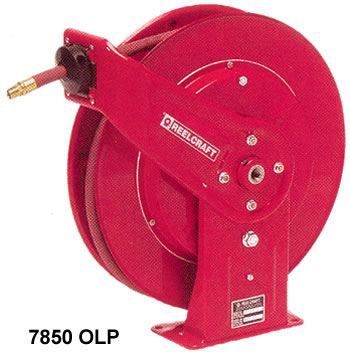

main product photo

SERIES 7000

HEAVY DUTY REEL
heavy duty reel

Spring Driven Air/Water/Oil/Grease
Series 7000 - 1/4", 3/8", 1/2", 3/4" I.D.
Series 7000 is very robust and ideal for the most
demanding applications. The reel’s base and guide arms
are formed from high-grade steel and engineered with
structural forms and gussets to yield the greatest amount
of strength. The standard low pressure hose is for air or
water service only. The basic reel without hose can be
used for air, water or oil. Consult us for other
products and hoses. Guide arm adjusts to 7 position.
industrial reels APPLICATIONS
• Industrial
• Automotive Service Centers
• Transmission Shops
• Fleet Maintenance Facilities
• Pneumatic Tools
• Aircraft Maintenance
• Tire Stores
• Agriculture
series 7000 reel
• Service Trucks
• Wash Down
Series 7000 E reels are the same
as 7000 O reels except E Series reels
are fully enclosed.
Cabinet style reel - guide arm not included; inlet hose is included
DIMENSIONS
7000 O 7000 E
in mm in mm
A 20 1/4 514 20 7/8 530
B 19 3/4 502 21 1/8 537
C 7 13/16 198 7 13/16 198
D 3 7/8 98 3 7/8 98
E 7 178 7 5/8 194

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICING FOR SERIES 7000 O (open) / SERIES 7000 E (enclosed)
MODEL WITH HOSE
Model
Price
WEIGHT
I.D.
LENGTH
O.D.
PRESSURE
(M)NPTF
Hose
Outlet
(F)NPTF
Reel
Inlet
lbs
kg
in
mm
ft
mm
in
mm
psi
bar
LOW PRESSURE AIR/WATER REELS Maximum Temperature 150° F (65°C)
$596
43
20
3/8
10
50
15
0.688
18
300
21
1/4
1/2
$663
47
21
3/8
10
70
22
0.688
18
300
21
1/4
1/2
$617
47
21
1/2
13
50
15
0.844
22
300
21
3/8
1/2
$647
47
21
1/2
13
50
15
0.750
19
300
21
1/2
1/2
$663
47
21
1/2
13
50
15
0.750
19
300
21
3/4 NH
1/2
$764
47
21
3/4
19
25
8
1.188
31
250
17
3/4
3/4
$800
63
38
3/8
19
25
8
1.188
31
300
3.5
1/4
1/2
$936
68
39
3/8
10
70
22
0.688
18
300
21
1/4
1/2
$913
74
40
1/2
13
50
15
0.844
22
300
21
3/8
1/2
$626
57
26
1/2
13
50
15
0.750
19
300
21
1/2
1/2
MEDIUM PRESSURE OIL REELS Maximum Temperature 210° F (99°C)
$909
55
25
3/8
10
50
15
0.69
18
2250
158
3/8
1/2
$805
57
26
1/2
13
50
15
0.815
21
2000
141
1/2
1/2
HIGH PRESSURE GREASE REELS Maximum Temperature 210° F (99°C)
$918
57
26
1/4
6
50
15
0.59
17
5000
345
1/4
1/2
$934
60
27
3/8
10
50
15
0.75
19
4000
276
1/4
1/2
Low pressure reels furnished standard with PVC hose. Medium pressure reels furnished standard with S.A.E. 100 R1T one
wire braid hose. High pressure reels furnished standard with S.A.E. 100 R2T two wire braid hose. For hydraulic or other applications
please consult us. *Cabinet style reel - guide arm not included; inlet hose is included

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

MODEL WITHOUT HOSE
Model
Price
WEIGHT
PRESSURE
lbs
kg
psi
bar
LOW PRESSURE AIR/WATER REELS Maximum Temperature 150° F (65°C)
- Reel inlet is 1/2" NPTF (F)(7900 series reels have a 3/4" NPTF (F) inlet.)
$524
40
18
500
35
$524
41
19
500
35
$569
41
19
500
35
MEDIUM PRESSURE OIL REELS Maximum Temperature 210° F (99°C) - Reel inlet is 1/2" NPTF (F)
$681
43
20
3000
207
$611
43
20
3000
207
HIGH PRESSURE GREASE REELS Maximum Temperature 210° F (99°C) - Reel inlet is 1/2" NPTF (F)
$716
43
20
5000
345
$785
46
21
5000
345
Low pressure reels furnished standard with PVC hose. Medium pressure reels furnished standard with S.A.E. 100 R1T one
wire braid hose. High pressure reels furnished standard with S.A.E. 100 R2T two wire braid hose. For hydraulic or other applications
please consult us.

REEL ACCESSORIES
Mounting brackets, motors display stand and more

ADDITIONAL ACCESSORIES
pivot base 340° PIVOT BASE
600608 / 600801 / 600801-12
340° Pivot Base
Aligns reel to the direction of hose or cord run. May be mounted with
reel upright or hanging. Mounting holes for reels are pre-drilled to
adapt to 4000, 5000, 5005 and 7000 series reels.
Weight 10 lbs. (5 kg).
Series 80000 & D80000 & 30006 order Model 600801. For
Series 30012 order model 600801-12.
swing bracket WALL-MOUNTED UNIVERSAL SWING BRACKET
600626 / 600980
Wall-Mounted Universal Swing Bracket
Bracket will pivot approximately 180°. All steel construction
with a durable baked on powder coat finish. Swing bracket
model 600626 will accommodate reel models 4000, 5000,
5005 and 7000 series reels. Model 600980 will accommodate
reel models 80000 and D80000. Weight 6 lbs (3 kg).
Note: Not for overhead mounting

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICING FOR ADDITIONAL ACCESSORIES
Model No. Description Price
S600608 340° Reel pivot base
$135.72
600626 Wall mounted universal swing bracket for Reelcraft hose, cord &
cable reels adapter assembly for mounting series
$77.22

ADJUSTABLE HOSE BUMPERS
Adjustable hose bumpers are solid molded rubber assuring a long life and
nonslip grip. Hose bumpers allow the desired length of hose to be
permanently stored outside the reel. Hose bumpers are included on the reels
purchased with hose. Reels purchased without hose do not include the hose
bumper. When ordering, advise the part number, reel model and the hose ID
and OD
hose bumpers
adjustable hose bumpers

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICING
Model No. Hose
Outside Dia.		 Hose
ID		 Use with Reel Series Dia.
B-C-E		 Dia. D Wgt.
(lbs.)		 Price
1-HR1004-3 .625 - .749 3/8 7000-D8000 / 80000 3 1 1/4 .42
$18.72
2-HR1004-3 .750 - 1.050 1/2* 7000-D8000 / 80000 / RT800 3 1 1/4 .42
$18.72
600838 .8750 - 1.2 5/8 7000
$18.72
3-HR1004-3 1.060 - 1.300 3/4 7000-D8000 / 80000 / D80000 3 1 1/4 .42
$18.72

INLET HOSE ASSEMBLIES
A flexible hose connection must be used between the hose reel inlet and
the source of supply to prevent possible misalignment and binding or
warranty is void. The inlet size of reel series 4000 O, 5000 O and
5000 E is 3/8" (9.5 mm) NPTF (F), 7000 O & 7000 E is 1/2"
(12.7 mm) NPTF (F), D8000 O and D8000 E is 1/2" (12.7 mm)
NPTF (F) depending on hose size. Please furnish the following infor-
mation when ordering: Part number-product and pressure to be handled.
Other sizes available as well.
S601020-2
1/2" ID X 2 FEET
300 PSI WORKING PRESSURE

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICING
Model No. Hose
ID		 Lgth.
(ft.)		 Pressure
(psi)		 NPFT (M)
Fittings (in.)		 Use with Reel Series Wgt.
(lbs.)		 Price
1/2
2
300
1/2 x 1/2
7000 / 8000 / 80000 / RT605 / 32000
0.7
$42.12
1/2
2
2000
1/2 x 1/2
7000 / 80000 (O & EMP)
1
$51.48
3/8
2
4000
1/2 x 3/8
7000 O / D8000 O / D8000 EHP
1
$64.35
*Male x Female Welding / **Female Welding both ends.
CAUTION: Be sure working pressure required does not exceed above rating. Misapplication can result in serious injury.
