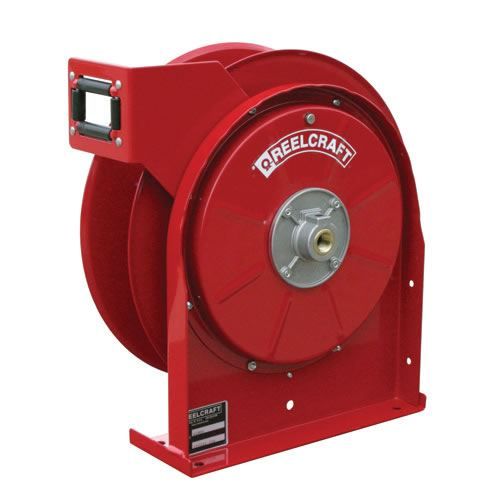

Series
4000 and 5000 reels are all steel construction
and compact for a wide range of applications with
critical space requirements. A full flow shaft and swivel
assures maximum product delivery. The Quiet Speed
latch mechanism offers quiet operation combined
with latch cam technology insuring longer latching life
and trouble-free performance.
Series
5000 E reels are the same as 5000 O reels except E Series
reels are fully enclosed. To order, change the model number
suffix letter O to E, Example: 5450 OHP becomes 5450 EHP.
Add 8 lbs. to open reel weight.
Ideal
where
space is
limited
Side-Mount
Reels 5650 OLPSMR
INSET:
ENCLOSED
MODEL
DIMENSIONS
- Size Index
1
2
3
4
in
mm
in
mm
in
mm
in
mm
A
12 7/8
327
14 3/8
365
17 5/8
448
17 5/8
448
B
12 3/8
314
14
356
16 1/2
419
16 1/2
419
C
8
203
9 3/4
248
9
3/4
248
9 3/4
248
D
2
1/2
64
2 1/2
64
2 1/2
64
2 1/2
64
E
5 5/8
143
6
1/8
156
5 7/8
149
7 1/4
184
Quiet
latch
w/Hose
Shipping
Wgt.
Hose
I.D.
Hose
O.D.
Hose
Length
Pressure
(M)NPTF
Hose Outlet
(F)NPTF
Reel Inlet
Quiet
latch
w/o hose
& bumper
Shipping
Wgt.
Pressure
Size
Index
#
lbs/kg
in/mm
in/mm
ft/m
psi/bar
in
in
lbs/kg
psi/bar
Low
Pressure Air/Water Reels Maximum Temperature 150 °F
(65 °C)
4420 OLP
18/ 8
1/4 6
.475 12
20 6
300 21
1/4
3/8
4400 OLP
17 8
500 35
1
4425 OLP
19- 9
1/4 6
.475 12
25 8
300 21
1/4
3/8
4400 OLP
17 8
500 35
1
4435 OLP
19/ 9
1/4 6
.475 12
35 11
300 21
1/4
3/8
4400 OLP
17 8
500 35
1
5450 OLP
26 /12
1/4 6
.475 12
50 15
300 21
1/4
3/8
5400 OLP
20 9
500 35
2
-
-
-
-
-
-
-
-
4600 OLP
17 8
500 35
1
4625 OLP
20/ 9
3/8 10
.600 15
25 8
300 21
1/4
3/8
4600 OLP
17 8
500 35
1
5635 OLP
25/ 11
3/8 10
.600 15
35 11
300 21
1/4
3/8
5600 OLP
21 10
500 35
2
A5825 OLP
27/ 12
1/2 13
.750 19
25 8
300 21
1/2
3/8
A5800 OLP
22 10
500 35
2
Medium
Pressure Oil Reels Maximum Temperature 210 °F (99 °C)
-
-
-
-
-
-
-
-
5400 OMP
23 10
3000 207
2
5630 OMP
31/ 14
3/8 10
.690 18
30 9
2600 179
3/8
3/8
5600 OMP
24 11
3000 207
2
High
Pressure Grease Reels Maximum Temperature 210 °F (99
°C)
-
-
-
-
-
-
-
-
5400 OHP
23 10
5000 345
2
*Floor
tank mount only - do not mount on ceiling. Low pressure
reels furnished standard with PVC hose. Compressed air hoses
should not be converted to oxygen service -
may cause explosion when O2 mixes with fuel.Medium pressure
reels furnished standard with S.A.E. 100 R1T one wire braid
hose. High pressure reels furnished standard with
S.A.E. 100 R2T two wire braid hose. Reference page 6 for guide
arm positions.
Order Online
Click the button of the item you wish to purchase.
*Right
hand mount models. Replace "R" with "L"
for left hand mount model.
REEL ACCESSORIES
Mounting
brackets, motors display stand and more
ADDITIONAL
ACCESSORIES
340°
PIVOT BASE
600608
/ 600801 / 600801-12
340° Pivot
Base
Aligns
reel to the direction of hose or cord run. May be mounted with
reel upright or hanging. Mounting holes for reels are pre-drilled
to
adapt to 4000, 5000, 5005 and 7000 series reels.
Weight 10 lbs. (5 kg).
Series
80000 & D80000 & 30006 order Model 600801. For
Series 30012 order model 600801-12.
WALL-MOUNTED
UNIVERSAL SWING BRACKET
600626
/ 600980
Wall-Mounted
Universal Swing Bracket
Bracket
will pivot approximately 180°. All steel construction
with a durable baked on powder coat finish. Swing bracket
model 600626 will accommodate reel models 4000, 5000,
5005 and 7000 series reels. Model 600980 will accommodate
reel models 80000 and D80000. Weight 6 lbs (3 kg).
Note:
Not for overhead mounting
Order Online
Click the button of the item you wish to purchase.
Wall mounted universal swing bracket for Reelcraft hose,
cord &
cable reels adapter assembly for mounting series
$77.22
ADJUSTABLE
HOSE BUMPERS
Adjustable
hose bumpers are solid molded rubber assuring a long life and
nonslip grip. Hose bumpers allow the desired length of hose
to be
permanently stored outside the reel. Hose bumpers are included
on the reels
purchased with hose. Reels purchased without hose do not include
the hose
bumper. When ordering, advise the part number, reel model and
the hose ID
and OD
Order Online
Click the button of the item you wish to purchase.
A
flexible hose connection must be used between the hose reel
inlet and the
source of supply to prevent possible misalignment and binding
or warranty
is void. The inlet size of reel series 4000 O, 5000 O and 5000
E is 3/8"
(9.5 mm) NPTF (F), 7000 O & 7000 E is 1/2" (12.7 mm)
NPTF (F),
D8000 O and D8000 E is 1/2" (12.7 mm) NPTF (F) depending
on hose
size. Please furnish the following information when ordering:
Part
number-product and pressure to be handled. Other sizes available
as well.
S601020-2
1/2" ID X 2 FEET
300 PSI WORKING PRESSURE
Order Online
Click the button of the item you wish to purchase.
*Male
x Female Welding / **Female Welding both ends.
CAUTION:
Be sure working pressure required does not exceed above rating.
Misapplication can result in serious injury.
