SERIES 4000 STANDARD HEAVY DUTY
CANTILEVER RACK
|
|
|
|
|
|
|
|
|
Available in upright heights from 6' to 20' with 2'
through 10' brace widths (measured on center). Arms
are completely adjustable on 3" centers to accommodate
an infinite variety of items. Straight arms are available
in nine different lengths with or without lips. Heavy Duty
and Extra Heavy Duty arms are both available in seven
lengths with or without lips. Inclined arms are available
in seven lengths with or without lips. A wide range of
base sizes allows custom designing of rack systems to
your individual needs. Uprights are punched on both
sides for versatility and can be used single sided or
double sided depending on the size of base used. Note
that arms must never be placed on the back side of a
single-based upright. |
|
Single sided uprights can be converted to doubles
when used with longer bases designed to accommodate

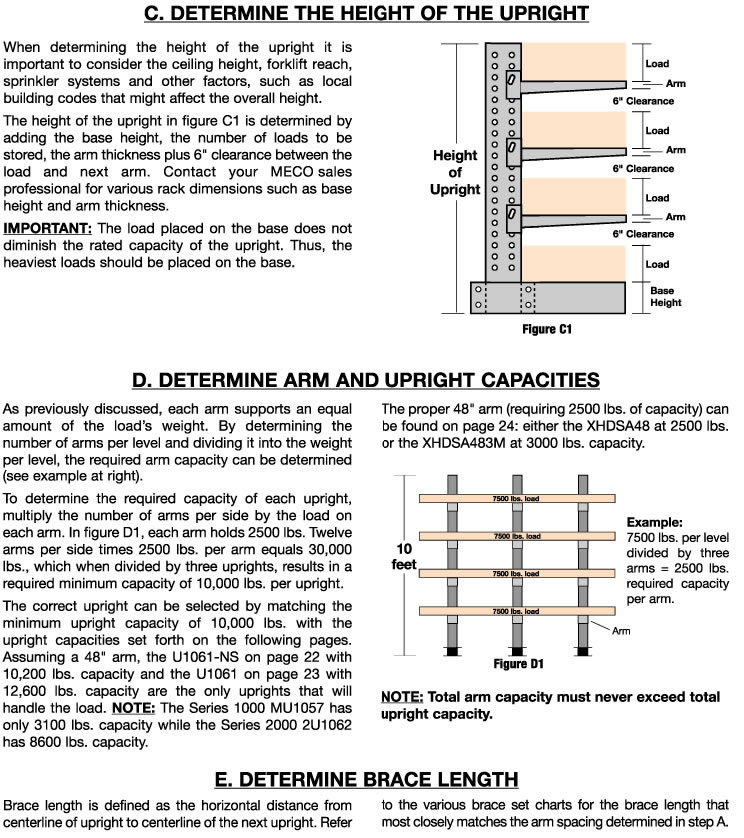

placement of arms on both sides. Upright capacities can
be computed by multiplying the number of arms per
upright by the individual arm capacities—NOT TO
EXCEED TOTAL UPRIGHT CAPACITIES
LISTED. Arm capacity is based on EVEN
DISTRIBUTION OF LOAD. All racks are designed
for quick assembly and come with complete instructions
and hardware for installation. |
|
|
|

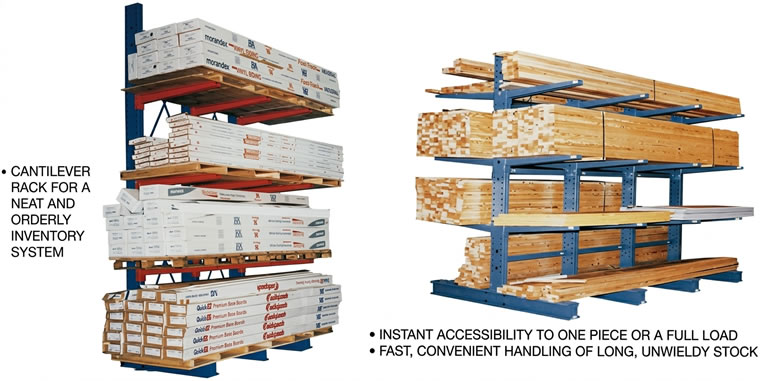

Completely adjustable CANTILEVER RACKS
eliminate storage problems. Heavy duty steel construction
permits storage of tubes, bars, structurals and other long
heavy items that must be kept off the floor. Bases can be
used for extra storage. Forklift easily loads off and on
arms and bases. Fast, convenient handling of heavy, long
unwieldy stock. Instant accessibility to one piece or a full

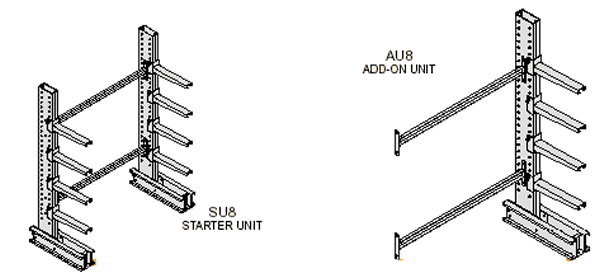

load. For longer materials, simply add braces and
uprights to fit your requirements. |
|
|
CANTILEVER RACKS are modular within each basic
capacity series so that additional arms, uprights and cross
braces may be ordered at any time to add to your existing
system. Different sized arms may be interchanged on
racks to further tailor your racks to different uses.
Standard and Heavy Duty arms are designed for use
on Series 4000 uprights only. |
|
|
|
|

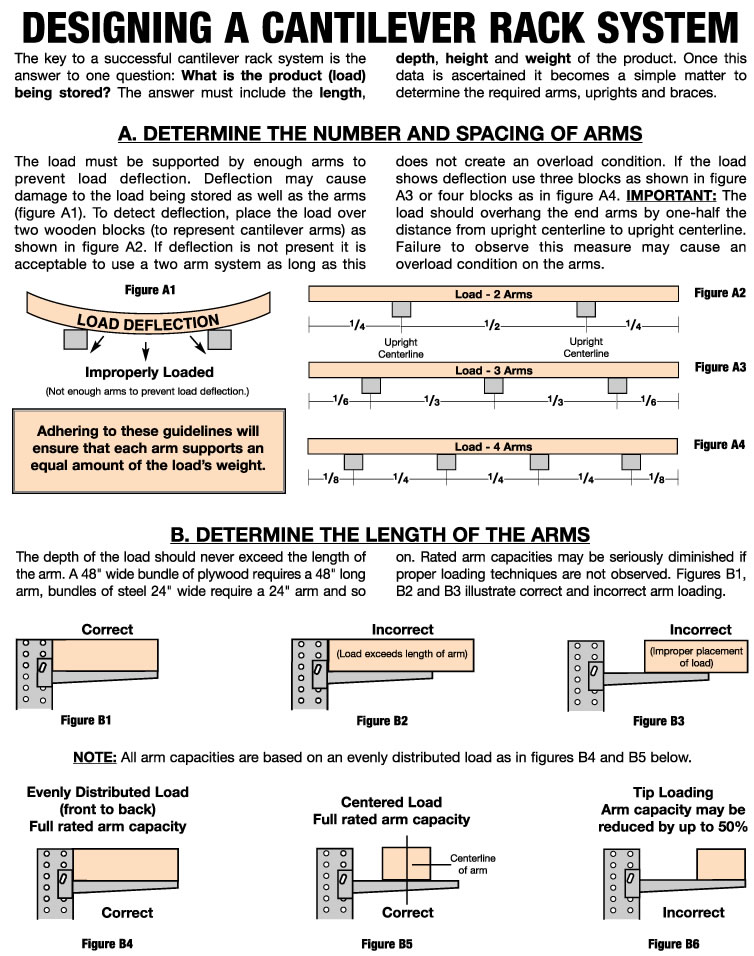

NOTE: For assistance designing a cantilever
rack system, CLICK HERE. |
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
PRICING FOR SERIES 4000 STANDARD HEAVY DUTY
CANTILEVER RACKS BY INDIVIDUAL COMPONENT.
|
|
| SINGLE SIDED UPRIGHTS |
|
Height
|
Length
|
Weight
|
Capacity (Lbs)
|
Model No.
|
Price
|
|
Base
|
Arm
|
|
6'
|
31"
|
12" & 18"
|
207 lbs
|
28,600 & 24,700 lbs
|
|
$805.38
|
|
37"
|
24"
|
216 lbs
|
21,500 lbs
|
|
$833.22
|
|
49"
|
30" & 36"
|
233 lbs
|
18,300 & 16,000 lbs
|
|
$894.18
|
|
61"
|
42" & 48"
|
270 lbs
|
14,200 & 12,800 lbs
|
|
$950.94
|
|
74"
|
54" & 60"
|
299 lbs
|
11,600 & 10,700 lbs
|
|
$1,016.06
|
|
8'
|
31"
|
12" & 18"
|
237 lbs
|
28,600 & 24,700 lbs
|
|
$890.56
|
|
37"
|
24"
|
245 lbs
|
21,500 lbs
|
|
$918.40
|
|
49"
|
30" & 36"
|
263 lbs
|
18,300 & 16,000 lbs
|
|
$979.36
|
|
61"
|
42" & 48"
|
281 lbs
|
14,200 & 12,800 lbs
|
|
$1,036.10
|
|
74"
|
54" & 60"
|
299 lbs
|
11,600 & 10,700 lbs
|
|
$1,101.22
|
|
10'
|
31"
|
12" & 18"
|
275 lbs
|
28,500 & 24,600 lbs
|
|
$1,036.86
|
|
37"
|
24"
|
283 lbs
|
21,300 lbs
|
|
$1,064.70
|
|
49"
|
30" & 36"
|
301 lbs
|
18,200 & 15,800 lbs
|
|
$1,125.66
|
|
61"
|
42" & 48"
|
319 lbs
|
14,100 & 12,600 lbs
|
|
$1,182.40
|
|
74"
|
54" & 60"
|
337 lbs
|
11,500 & 10,600 lbs
|
|
$1,247.52
|
|
12'
|
31"
|
12" & 18"
|
311 lbs
|
28,200 & 24,400 lbs
|
|
$1,166.22
|
|
37"
|
24"
|
319 lbs
|
20,900 lbs
|
|
$1,194.06
|
|
49"
|
30" & 36"
|
337 lbs
|
17,800 & 15,600 lbs
|
|
$1,255.02
|
|
61"
|
42" & 48"
|
355 lbs
|
13,900 & 12,500 lbs
|
|
$1,311.76
|
|
74"
|
54" & 60"
|
373 lbs
|
11,400 & 10,500 lbs
|
|
$1,376.88
|
|
14'
|
37"
|
12", 18" & 24"
|
358 lbs
|
27,400, 23,400 lbs
& 20,000 lbs
|
|
$1,391.94
|
|
49"
|
30" & 36
|
376 lbs
|
17,600 & 15,400 lbs
|
|
$1,452.90
|
|
61"
|
42" & 48"
|
393 lbs
|
13,700 & 12,400 lbs
|
|
$1,509.66
|
|
74"
|
54" & 60"
|
411 lbs
|
11,300 & 10,400 lbs
|
|
$1,574.78
|
|
15'
|
37"
|
12", 18" & 24"
|
378 lbs
|
27,100, 22,600 lbs
& 19,200 lbs
|
|
$1,485.68
|
|
49"
|
30" & 36
|
395 lbs
|
16,900 & 15,000 lbs
|
|
$1,546.64
|
|
61"
|
42" & 48
|
413 lbs
|
13,600 & 12,300 lbs
|
|
$1,603.38
|
|
74"
|
54" & 60"
|
431 lbs
|
11,200 & 10,300 lbs
|
|
$1,668.50
|
|
16'
|
37"
|
12", 18" & 24"
|
396 lbs
|
23,700, 20,300 lbs
& 17,600 lbs
|
|
$1,541.92
|
|
49"
|
30" & 36"
|
413 lbs
|
15,300 & 14,000 lbs
|
|
$1,602.88
|
|
61"
|
42" & 48"
|
431 lbs
|
12,900 & 12,000 lbs
|
|
$1,659.62
|
|
74"
|
54" & 60"
|
449 lbs
|
11,100 & 10,300 lbs
|
|
$1,724.74
|
|
18'
|
49"
|
12" & 18"
|
448 lbs
|
22,200 & 19,200 lbs
|
|
$1,782.94
|
|
49"
|
24" & 30"
|
448 lbs
|
16,700 & 14,700 lbs
|
|
$1,782.94
|
|
49"
|
36"
|
448 lbs
|
13,600 lbs
|
|
$1,782.94
|
|
61"
|
42" & 48
|
466 lbs
|
12,700 & 11,900 lbs
|
|
$1,839.68
|
|
74"
|
54" & 60"
|
484 lbs
|
11,000 & 10,000 lbs
|
|
$1,904.80
|
|
20'
|
49"
|
12" & 18"
|
483 lbs
|
20,600 & 17,800 lbs
|
|
$1,913.34
|
|
49"
|
24" & 30"
|
483 lbs
|
15,800 & 3,900 lbs
|
|
$1,913.34
|
|
49"
|
36"
|
483 lbs
|
12,800 lbs
|
|
$1,913.34
|
|
61"
|
42" & 48"
|
501 lbs
|
11,900 & 11,200 lbs
|
|
$1,970.08
|
|
74"
|
54" & 60"
|
520 lbs
|
10,500 & 9,800 lbs
|
|
$2,035.20
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
DOUBLE SIDED UPRIGHTS
|
|
Height
|
Length
|
Weight
|
Capacity
|
Model No.
|
Price
|
|
Base
|
Arm
|
|
6'
|
53"
|
12" & 18"
|
245 lbs
|
57,200 & 49,400 lbs
|
|
$933.74
|
|
65"
|
24"
|
263 lbs
|
43,000 lbs
|
|
$990.06
|
|
82"
|
30" & 36"
|
288 lbs
|
36,600 & 32,000 lbs
|
|
$1,081.10
|
|
106"
|
42" & 48"
|
323lbs
|
28,400 & 25,600 lbs
|
|
$1,193.14
|
|
130"
|
54" & 60"
|
359 lbs
|
23,200 & 21,400 lbs
|
|
$1,359.38
|
|
8'
|
53"
|
12" & 18"
|
273 lbs
|
57,200 & 49,400 lbs
|
|
$1,025.98
|
|
65"
|
24"
|
290 lbs
|
43,000 lbs
|
|
$1,082.30
|
|
82"
|
30" & 36"
|
315 lbs
|
36,600 & 32,000 lbs
|
|
$1,173.34
|
|
106"
|
42" & 48"
|
349 lbs
|
28,400 & 25,600 lbs
|
|
$1,285.38
|
|
130"
|
54" & 60"
|
384 lbs
|
23,200 & 21,400 lbs
|
|
$1,451.62
|
|
10'
|
53"
|
12" & 18"
|
311 lbs
|
57,000 & 49,200 lbs
|
|
$1,172.26
|
|
65"
|
24"
|
328 lbs
|
42,600 lbs
|
|
$1,228.58
|
|
82"
|
30" & 36"
|
353 lbs
|
36,400 & 31,600 lbs
|
|
$1,319.62
|
|
106"
|
42" & 48"
|
387 lbs
|
28,200 & 25,200 lbs
|
|
$1,431.68
|
|
130"
|
54" & 60"
|
422 lbs
|
23,000 & 21,200 lbs
|
|
$1,597.92
|
|
12'
|
53"
|
12" & 18"
|
347 lbs
|
56,400 & 48,800 lbs
|
|
$1,301.62
|
|
65"
|
24"
|
364 lbs
|
41,800 lbs
|
|
$1,357.94
|
|
82"
|
30" & 36"
|
389 lbs
|
35,600 & 31,200 lbs
|
|
$1,448.98
|
|
106"
|
42" & 48"
|
423 lbs
|
27,800 & 25,000 lbs
|
|
$1,561.04
|
|
130"
|
54" & 60"
|
458 lbs
|
22,800 & 21,000 lbs
|
|
$1,727.28
|
|
14'
|
65"
|
12" & 18"
|
406 lbs
|
54,800 & 46,800 lbs
|
|
$1,555.84
|
|
65"
|
24"
|
406 lbs
|
40,400 lbs
|
|
$1,555.84
|
|
82"
|
30" & 36"
|
427 lbs
|
35,200 & 30,800 lbs
|
|
$1,646.88
|
|
106"
|
42" & 48"
|
462 lbs
|
27,400 & 24,800 lbs
|
|
$1,758.94
|
|
130"
|
54" & 60"
|
496 lbs
|
22,600 & 20,800 lbs
|
|
$1,925.18
|
|
15'
|
65"
|
12" & 18"
|
427 lbs
|
54,200 & 45,200 lbs
|
|
$1,649.58
|
|
65"
|
24"
|
427 lbs
|
38,400 lbs
|
|
$1,649.58
|
|
82"
|
30" & 36"
|
447 lbs
|
33,800 & 30,000 lbs
|
|
$1,740.62
|
|
106"
|
42" & 48"
|
482 lbs
|
27,200 & 24,600 lbs
|
|
$1,852.66
|
|
130"
|
54" & 60"
|
516 lbs
|
22,400 & 20,600 lbs
|
|
$2,018.90
|
|
16'
|
65"
|
12" & 18"
|
445 lbs
|
47,400 & 40,600 lbs
|
|
$1,705.82
|
|
65"
|
24"
|
445 lbs
|
35,200 lbs
|
|
$1,705.82
|
|
82"
|
30" & 36"
|
465 lbs
|
30,600 & 28,000 lbs
|
|
$1,796.86
|
|
106"
|
42" & 48"
|
499 lbs
|
25,800 & 24,000 lbs
|
|
$1,908.90
|
|
130"
|
54" & 60"
|
534 lbs
|
22,200 & 20,600 lbs
|
|
$2,075.14
|
|
18'
|
82"
|
12" & 18"
|
500 lbs
|
44,400 & 38,400 lbs
|
|
$1,976.90
|
|
82"
|
24" & 30"
|
503 lbs
|
33,400 & 29,400 lbs
|
|
$1,976.90
|
|
82"
|
36"
|
503 lbs
|
27,200 lbs
|
|
$1,976.90
|
|
106"
|
42" & 48"
|
535 lbs
|
25,400 & 23,800 lbs
|
|
$2,088.96
|
|
130"
|
54" & 60"
|
569 lbs
|
22,000 & 20,000 lbs
|
|
$2,255.20
|
|
20'
|
82"
|
12" & 18"
|
538 lbs
|
41,200 & 35,600 lbs
|
|
$2,107.30
|
|
82"
|
24" & 30"
|
538 lbs
|
31,600 & 27,800 lbs
|
|
$2,107.30
|
|
82"
|
36"
|
538 lbs
|
25,600 lbs
|
|
$2,107.30
|
|
106"
|
42" & 48"
|
570 lbs
|
23,800 & 22,400 lbs
|
|
$2,219.36
|
|
130"
|
54" & 60"
|
604 lbs
|
21,000 & 19,600 lbs
|
|
$2,385.60
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
| STANDARD STRAIGHT ARMS |
|
Length
|
Capacity
|
Weight
|
Model No.
|
Price
|
|
No Lip
|
Lip
|
|
12"
|
3,000 lbs
|
9 lbs
|
|
|
$60.02
|
|
18"
|
2,500 lbs
|
11 lbs
|
|
|
$68.72
|
|
24"
|
2,000 lbs
|
13 lbs
|
|
|
$76.96
|
|
30"
|
1,500 lbs
|
15 lbs
|
|
|
$88.90
|
|
36"
|
1,200 lbs
|
17 lbs
|
|
|
$97.84
|
|
42"
|
1,100 lbs
|
19 lbs
|
|
|
$111.52
|
|
48"
|
1,000 lbs
|
21 lbs
|
|
|
$111.70
|
|
54"
|
800 lbs
|
24 lbs
|
|
|
$133.28
|
|
60"
|
600 lbs
|
26 lbs
|
|
|
$137.30
|
|
STRAIGHT ARMS through 48" long have a minimum pitch of 3/8" per foot to compensate for deflection. 54" and 60" arms have a
minimum pitch of 5/8" per foot. |
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
|
STANDARD INCLINED ARMS
|
|
|
Length
|
Capacity
|
Weight
|
Model No.
|
Price
|
|
No Lip
|
Lip
|
|
12"
|
3,000 lbs
|
9 lbs
|
|
|
$63.74
|
|
18"
|
2,500 lbs
|
11 lbs
|
|
|
$73.34
|
|
24"
|
2,000 lbs
|
13 lbs
|
|
|
$81.66
|
|
30"
|
1,500 lbs
|
15 lbs
|
|
|
$94.66
|
|
36"
|
1,200 lbs
|
17 lbs
|
|
|
$103.02
|
|
42"
|
1,100 lbs
|
22 lbs
|
|
|
$115.84
|
|
48"
|
1,000 lbs
|
23 lbs
|
|
|
$126.10
|
|
|
| INCLINED ARMS have a minimum pitch of 20 degrees or approximately 4.36" per foot. |
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
HEAVY DUTY AND EXTRA HEAVY DUTY STRAIGHT ARMS
|
|
Length
|
Capacity
|
Weight
|
Model No.
|
Price
|
|
No Lip
|
Lip
|
|
36"
|
2175 lbs
|
28 lbs
|
|
|
$127.12
|
|
3400 lbs
|
34 lbs
|
|
|
$161.74
|
|
42"
|
1865 lbs
|
31 lbs
|
|
|
$150.98
|
|
2900 lbs
|
37 lbs
|
|
|
$185.34
|
|
48"
|
1630 lbs
|
34 lbs
|
|
|
$150.78
|
|
2500 lbs
|
40 lbs
|
|
|
$185.06
|
|
3000 lbs
|
39 lbs
|
|
|
$214.22
|
|
4000 lbs
|
51 lbs
|
|
|
$264.70
|
|
54"
|
1440 lbs
|
38 lbs
|
|
|
$187.22
|
|
2000 lbs
|
44 lbs
|
|
|
$222.62
|
|
60"
|
1300 lbs
|
42 lbs
|
|
|
$184.22
|
|
1650 lbs
|
46 lbs
|
|
|
$266.88
|
|
2000 lbs
|
61 lbs
|
|
|
$346.98
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|

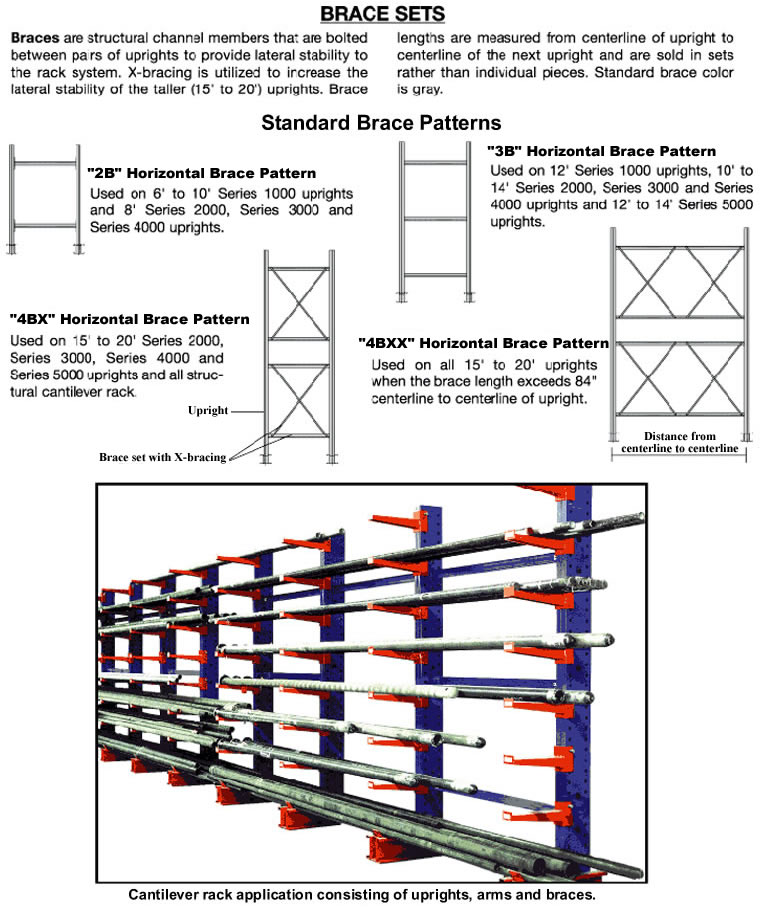

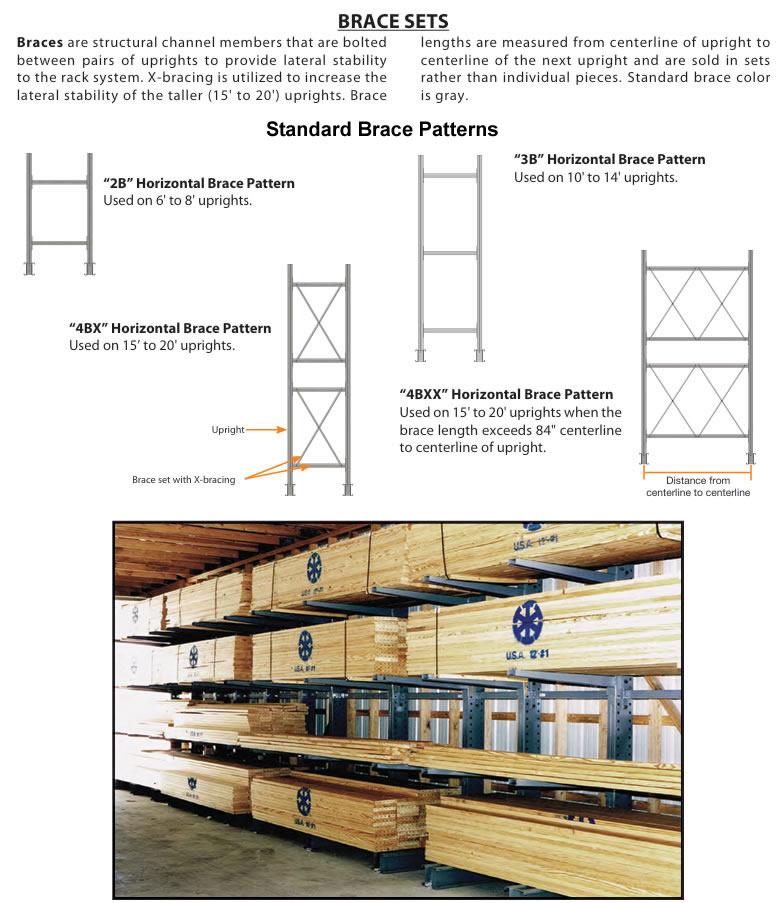

PRICING FOR BRACE SETS
|
|
Length*
|
For 8' Uprights
(Set of 2)
|
For 10'-14' Uprights
(Set of 3)
|
For 15'-20' Uprights
(Set of 4, Including X-Bracing)
|
|
Model No.
|
Weight
|
Price
|
Model No.
|
Weight
|
Price
|
Model No.
|
Weight
|
Price
|
|
24"
|
|
21 lbs
|
$113.76
|
|
31 lbs
|
$170.62
|
|
66 lbs
|
$364.56
|
|
36"
|
|
28 lbs
|
$131.82
|
|
41 lbs
|
$197.70
|
|
81 lbs
|
$387.30
|
|
42"
|
|
31 lbs
|
$138.05
|
|
47 lbs
|
$207.06
|
|
90 lbs
|
$406.79
|
|
48"
|
|
35 lbs
|
$146.15
|
|
52 lbs
|
$219.23
|
|
97 lbs
|
$423.76
|
|
60"
|
|
42 lbs
|
$170.71
|
|
62 lbs
|
$256.09
|
|
113 lbs
|
$493.11
|
|
72"
|
|
49 lbs
|
$187.96
|
|
73 lbs
|
$281.95
|
|
130 lbs
|
$580.48
|
|
84"
|
|
56 lbs
|
$203.23
|
|
83 lbs
|
$304.81
|
|
147 lbs
|
$599.28
|
|
96"
|
|
63 lbs
|
$238.30
|
|
94 lbs
|
$356.34
|
|
182 lbs
|
$755.45
|
|
120"
|
|
113 lbs
|
$364.99
|
|
170 lbs
|
$546.48
|
|
283 lbs
|
$1,056.29
|
|
|
| * Length of braces is measured from center of upright to center of upright. |
|
|
Heavy Duty Cantilever Rack, Bar Storage Racks, Cantilever Racks, Cantilever Rack Arms, Cantilever Racking, Cantilever Storage
Racks, Meco Cantilever Rack, and Pipe Storage Racks from your source for material handling equipment.
|
|
