SERIES 2000 MEDIUM-HEAVY DUTY CANTILEVER RACK

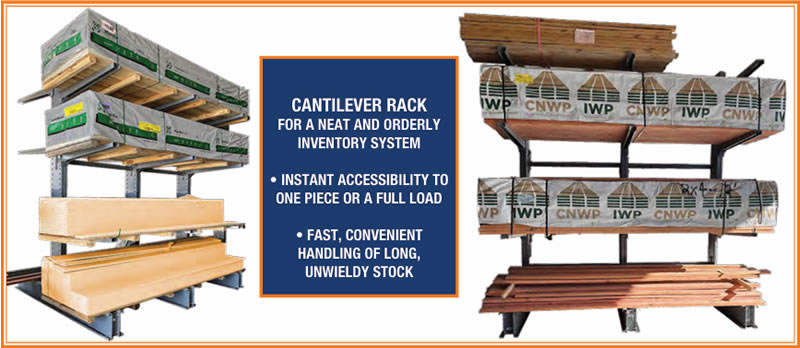

Cantilever Rack is a freestanding storage unit with horizontal load carrying arms extending outward from a single vertical column.
The absence of a vertical support on the outboard ends of the arms permits uninterrupted storage of long lengths of material.

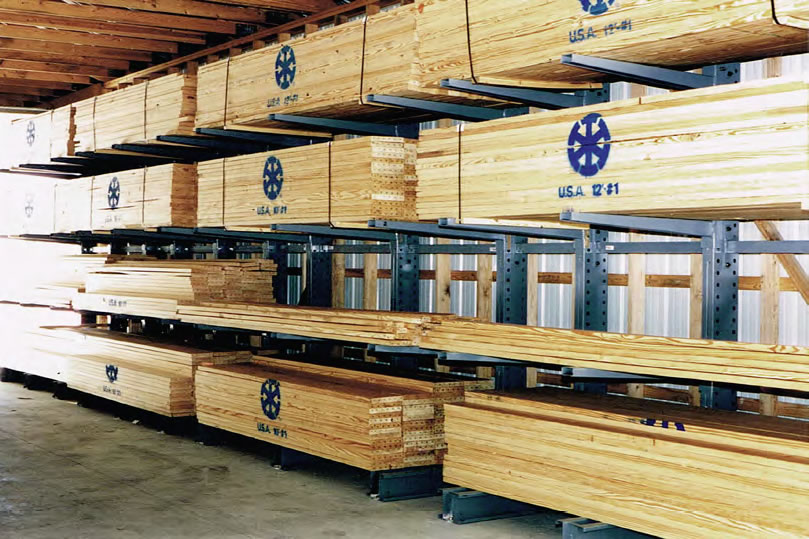

Cantilever rack application consisting of uprights, arms and braces.
Standard color for all cantilever rack components is gray. Custom colors available at additional cost.
PRICING FOR SERIES 2000 MEDIUM-HEAVY DUTY CANTILEVER RACKS
SERIES 2000 UPRIGHTS, ARMS and BRACE SETS are not interchangeable with any other rack series.
| SINGLE SIDED UPRIGHTS | ||||||
| HT. OF UPRIGHT |
LENGTH OF BASE |
LENGTH OF ARM |
WEIGHT (LBS) |
CAPACITY (LBS) | MODEL NO. | PRICE |
| 6' | 38" | 12" & 18" | 154 | 18,100 & 15,300 | 2U638 | $625.28 |
| 24" | 154 | 13,300 | 2U638 | $625.28 | ||
| 50" | 30" & 36" | 167 | 11,800 & 10,600 | 2U650 | $673.88 | |
| 62" | 42" & 48" | 180 | 3,600 & 8,800 | 2U662 | $718.62 | |
| 8' | 38" | 12" & 18" | 180 | 18,100 & 15,300 | 2U838 | $708.50 |
| 24" | 180 | 13,300 | 2U838 | $708.50 | ||
| 50" | 30" & 36" | 193 | 11,800 & 10,600 | 2U850 | $756.62 | |
| 62" | 42" & 48" | 206 | 3,600 & 8,800 | 2U862 | $801.84 | |
| 10' | 38" | 12" & 18" | 208 | 17,400 & 14,900 | 2U1038 | $803.82 |
| 24" | 208 | 13,100 | 2U1038 | $803.82 | ||
| 50" | 30" & 36" | 222 | 11,500 & 10,300 | 2U1050 | $851.92 | |
| 62" | 42" & 48" | 235 | 9,400 & 8,600 | 2U1062 | $897.14 | |
| 12' | 38" | 12" & 18" | 234 | 16,800 & 14,500 | 2U1238 | $904.86 |
| 24" | 234 | 12,600 | 2U1238 | $904.86 | ||
| 50" | 30" & 36" | 248 | 11,200 & 10,200 | 2U1250 | $952.96 | |
| 62" | 42" & 48" | 261 | 9,300 & 8,500 | 2U1262 | $998.18 | |
| 14' | 38" | 12" & 18" | 261 | 16,200 & 14,100 | 2U1438 | $1,053.34 |
| 24" | 261 | 12,300 | 2U1438 | $1,053.34 | ||
| 50" | 30" & 36" | 275 | 10,900 & 9,800 | 2U1450 | $1,101.44 | |
| 62" | 42" & 48" | 288 | 8,900 & 8,300 | 2U1462 | $1,146.66 | |
| 16' | 38" | 12" & 18" | 290 | 15,800 & 13,800 | 2U1638 | $1,231.02 |
| 24" | 290 | 12,100 | 2U1638 | $1,231.02 | ||
| 50" | 30" & 36" | 303 | 10,600 & 9,400 | 2U1650 | $1,279.12 | |
| 62" | 42" & 48" | 317 | 8,400 & 7,500 | 2U1662 | $1,324.34 | |
| 18' | 38" | 12" & 18" | 317 | 15,700 & 13,700 | 2U1838 | $1,381.12 |
| 24" | 317 | 11,900 | 2U1838 | $1,381.12 | ||
| 50" | 30" & 36" | 330 | 10,400 & 9,200 | 2U1850 | $1,429.22 | |
| 62" | 42" & 48" | 344 | 8,200 & 7,400 | 2U1862 | $1,474.46 | |
| 20' | 38" | 12" & 18" | 344 | 15,600 & 13,600 | 2U2038 | $1,484.74 |
| 24" | 344 | 11,700 | 2U2038 | $1,484.74 | ||
| 50" | 30" & 36" | 357 | 10,200 & 9,000 | 2U2050 | $1,532.86 | |
| 62" | 42" & 48" | 371 | 8,100 & 7,300 | 2U2062 | $1,578.08 | |
| DOUBLE SIDED UPRIGHTS | ||||||
| HT. OF UPRIGHT |
LENGTH OF BASE |
LENGTH OF ARM |
WEIGHT (LBS) |
CAPACITY (LBS) | MODEL NO. | PRICE |
| 6' | 59" | 12" & 18" | 182 | 36,200 & 30,600 | 2DU659 | $818.56 |
| 24" | 182 | 26,600 | 2DU659 | $818.56 | ||
| 83" | 30" & 36" | 209 | 23,600 & 21,200 | 2DU683 | $908.54 | |
| 107" | 42" & 48" | 236 | 19,200 & 17,600 | 2DU6107 | $998.56 | |
| 8' | 59" | 12" & 18" | 208 | 36,200 & 30,600 | 2DU859 | $818.56 |
| 24" | 208 | 26,600 | 2DU859 | $818.56 | ||
| 83" | 30" & 36" | 235 | 23,600 & 21,200 | 2DU883 | $818.56 | |
| 107" | 42" & 48" | 262 | 19,200 & 17,600 | 2DU8107 | $998.56 | |
| 10' | 59" | 12" & 18" | 237 | 34,800 & 29,800 | 2DU1059 | $913.86 |
| 24" | 237 | 26,200 | 2DU1059 | $913.86 | ||
| 83" | 30" & 36" | 264 | 23,000 & 20,600 | 2DU1083 | $1,003.84 | |
| 107" | 42" & 48" | 291 | 18,800 & 17,200 | 2DU10107 | $1,093.86 | |
| 12' | 59" | 12" & 18" | 263 | 33,600 & 29,000 | 2DU1259 | $1,014.90 |
| 24" | 263 | 25,200 | 2DU1259 | $1,014.90 | ||
| 83" | 30" & 36" | 290 | 22,400 & 20,400 | 2DU1283 | $1,104.88 | |
| 107" | 42" & 48" | 317 | 18,600 & 17,000 | 2DU12107 | $1,194.90 | |
| 14' | 59" | 12" & 18" | 290 | 32,400 & 28,200 | 2DU1459 | $1,163.38 |
| 24" | 290 | 24,600 | 2DU1459 | $1,163.38 | ||
| 83" | 30" & 36" | 317 | 21,800 & 19,600 | 2DU1483 | $1,253.36 | |
| 107" | 42" & 48" | 344 | 17,800 & 16,600 | 2DU14107 | $1,343.38 | |
| 16' | 59" | 12" & 18" | 318 | 31,600 & 27,600 | 2DU1659 | $1,341.06 |
| 24" | 318 | 24,200 | 2DU1659 | $1,341.06 | ||
| 83" | 30" & 36" | 345 | 21,200 & 18,800 | 2DU1683 | $1,431.04 | |
| 107" | 42" & 48" | 372 | 16,800 & 15,000 | 2DU16107 | $1,521.06 | |
| 18' | 59" | 12" & 18" | 345 | 31,400 & 27,400 | 2DU1859 | $1,491.18 |
| 24" | 345 | 23,800 | 2DU1859 | $1,491.18 | ||
| 83" | 30" & 36" | 372 | 20,800 & 18,400 | 2DU1883 | $1,581.14 | |
| 107" | 42" & 48" | 399 | 16,400 & 14,800 | 2DU18107 | $1,671.18 | |
| 20' | 59" | 12" & 18" | 372 | 31,200 & 27,200 | 2DU2059 | $1,594.80 |
| 24" | 372 | 23,400 | 2DU2059 | $1,594.80 | ||
| 83" | 30" & 36" | 399 | 20,400 & 18,000 | 2DU2083 | $1,684.78 | |
| 107" | 42" & 48" | 426 | 16,200 & 14,600 | 2DU20107 | $1,774.80 | |
ARMS below can be used on SERIES 2000 uprights only. Capacities are based on an evenly distributed load. Note that arm lips are not intended to
bear any portion of the load.
| STRAIGHT ARMS |
|||||
| LENGTH | CAPACITY | WEIGHT | MODEL NO. WITHOUT LIP |
MODEL NO. WITH LIP |
PRICE |
| 12" | 2,000 lbs | 7 lbs | 2SA12 | 2SA12L | $53.02 |
| 18" | 1,500 lbs | 8 lbs | 2SA18 | 2SA18L | $59.20 |
| 24" | 1,200 lbs | 10 lbs | 2SA24 | 2SA24L | $65.98 |
| 30" | 1,000 lbs | 12 lbs | 2SA30 | 2SA30L | $74.64 |
| 36" | 800 lbs | 13 lbs | 2SA36 | 2SA36L | $82.18 |
| 42" | 700 lbs | 15 lbs | 2SA42 | 2SA42L | $96.80 |
| 48" | 600 lbs | 17 lbs | 2SA48 | 2SA48L | $99.02 |
| INCLINED ARMS | |||||
| LENGTH | CAPACITY | WEIGHT | MODEL NO. WITHOUT LIP |
MODEL NO. WITH LIP |
PRICE |
| 12" | 2,000 lbs | 7 lbs | 2IA12 | 2IA12L | $54.94 |
| 18" | 1,500 lbs | 8 lbs | 2IA18 | 2IA18L | $63.30 |
| 24" | 1,200 lbs | 10 lbs | 2IA24 | 2IA24L | $70.16 |
| 30" | 1,000 lbs | 12 lbs | 2IA30 | 2IA30L | $81.60 |
| 36" | 800 lbs | 13 lbs | 2IA36 | 2IA36L | $86.90 |
| 42" | 700 lbs | 15 lbs | 2IA42 | 2IA42L | $98.22 |
| 48" | 600 lbs | 17 lbs | 2IA48 | 2IA48L | $105.82 |
| HEAVY DUTY AND EXTRA HEAVY DUTY STRAIGHT ARMS | |||||
| LENGTH | CAPACITY | WEIGHT | MODEL NO. WITHOUT LIP |
MODEL NO. WITH LIP |
PRICE |
| 24" | 2,400 lbs | 14 lbs | 2HDSA24 | 2HDSA24L | $82.52 |
| 30" | 2,000 lbs | 16 lbs | 2HDSA30 | 2HDSA30L | $99.12 |
| 36" | 1,500 lbs | 18 lbs | 2HDSA36 | 2HDSA36L | $100.14 |
| 2,400 lbs | 22 lbs | 2XHDSA36 | 2XHDSA36L | $133.68 | |
| 42" | 1,500 lbs | 21 lbs | 2HDSA42 | 2HDSA42L | $114.02 |
| 2,400 lbs | 25 lbs | 2XHDSA42 | 2XHDSA42L | $136.34 | |
| 48" | 1,000 lbs | 21 lbs | 2HDSA481M | 2HDSA48L1M | $106.40 |
| 1,500 lbs | 23 lbs | 2HDSA48 | 2HDSA48L | $113.92 | |
| 2,000 lbs | 29 lbs | 2XHDSA48 | 2XHDSA48L | $136.14 | |
STRAIGHT ARMS have a minimum pitch of 3⁄8" per foot to com
pensate for deflection. Arm capacities are based on an evenly
distributed load.
INCLINED ARMS have a pitch of 20 degrees or approximately 4.36"
per foot. Arm capacities are based on an evenly distributed load.
| BRACES FOR 8' UPRIGHTS -SET OF TWO | BRACES FOR 10' - 14' UPRIGHTS -SET OF THREE | BRACES FOR 16' - 20' UPRIGHTS - SET OF FOUR INCLUDING X-BRACING |
|||||||
| LENGTH* | MODEL NO. | WEIGHT | PRICE | MODEL NO. | WEIGHT | PRICE | MODEL NO. | WEIGHT | PRICE |
| 23" | 22B24 | 21 lbs | $80.96 | 23B24 | 31 lbs | $121.44 | 24B24X | 65 lbs | $261.02 |
| 35" | 22B36 | 28 lbs | $96.32 | 23B36 | 41 lbs | $144.48 | 24B36X | 80 lbs | $282.34 |
| 41" | 22B42 | 31 lbs | $101.54 | 23B42 | 47 lbs | $152.32 | 24B42X | 88 lbs | $298.46 |
| 47" | 22B48 | 35 lbs | $108.42 | 23B48 | 52 lbs | $162.64 | 24B48X | 96 lbs | $312.64 |
| 59" | 22B60 | 42 lbs | $128.00 | 23B60 | 62 lbs | $192.00 | 24B60X | 113 lbs | $370.46 |
| 71" | 22B72 | 49 lbs | $141.50 | 23B72 | 73 lbs | $212.24 | 24B72X | 130 lbs | $437.22 |
| 83" | 22B84 | 56 lbs | $153.86 | 23B84 | 83 lbs | $230.80 | 24B84X | 147 lbs | $448.32 |
| 95" | 22B96 | 63 lbs | $174.94 | 23B96 | 94 lbs | $262.40 | 24B96XX | 181 lbs | $563.84 |
| 119" | 22B120 | 113 lbs | $280.48 | 23B120 | 170 lbs | $420.72 | 24B120XX | 282 lbs | $797.86 |
* Length of braces is measured from center of upright to center of upright.
ALL WEIGHTS INCLUDE HARDWARE
