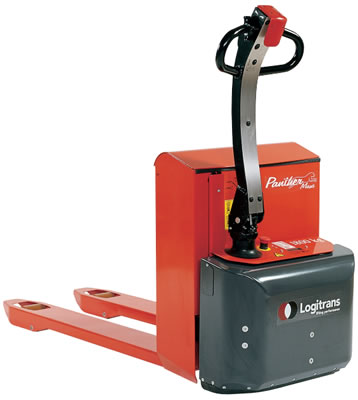

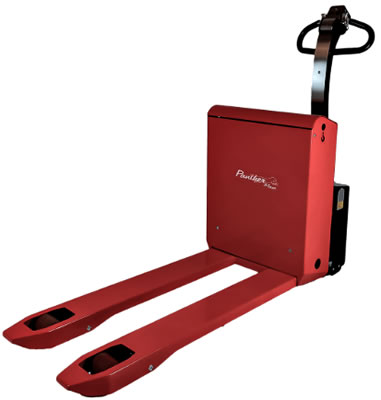

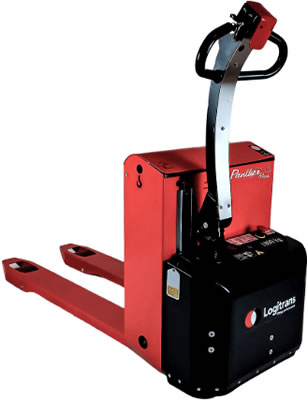

ELECTRIC PALLET TRUCK PANTHER MAXI
Optimises the working condition

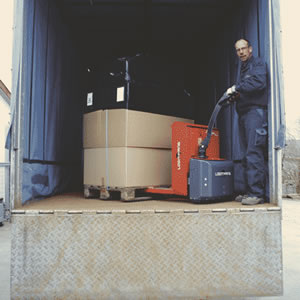

With Panther Maxi you can easily and quietly transport different pallets – even in confined areas. With little effort you can work safely and efficiently, while keeping an ergonomically correct posture.
The elegant design with rounded corners reduces risk of damaging surroundings, pallets and valuable items. In addition, the user’s safety and ergonomic working conditions are pivotal, e.g. with the ergonomic handle which ensures a relaxed hold.
We always ensure the highest quality possible, thanks to an extended test program and a close cooperation with experts within the health and safety field.

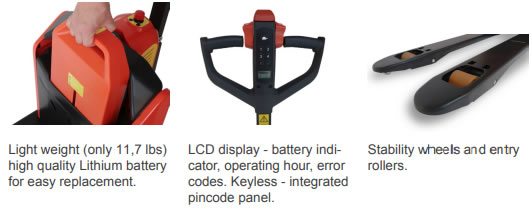

- High performance: 1,800 kg capacity, ACF2C technology (Curtis Controller), long battery life, and adjustable speed control.

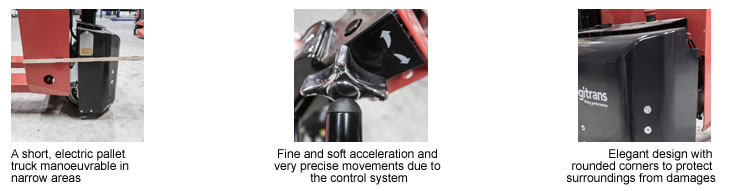

- Optimised space usage: Compact design, upright handle operation, and narrower than a EUR pallet.
- Durable and low maintenance: Brushless wheel motor, easy access to components, and low maintenance costs.

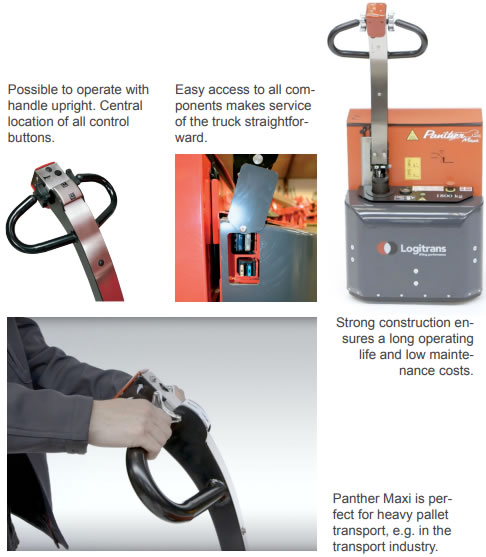

- Enhanced safety: Motor brake, all-position safety button, and centrally located controls.
- Ergonomics: Comfortable handle and rounded corners for better usability.
- Integrated charger: Simplifies charging logistics – operators can plug directly without external chargers.

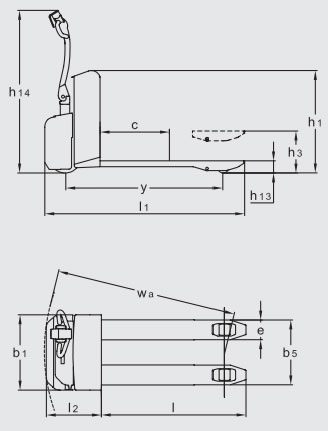

PANTHER MAXI DIMENSIONS
| PRICING & SPECIFICATION |
|||
| Model | Panther Maxi | Panther Maxi48 | |
| Price | $8,978.00 | $9,115.00 | |
| Capacity | 4000 lbs | 4000 lbs | |
| Lifting Height | h3 | 8 | 8 |
| Fork Length | I | 32,36, 38, 42, 45, 60 | 48 |
| Overall Height | h1 | 13.25 | 32.25 |
| Overall width b5=20.5/b5=27 | b1 | 23.5/27 | 23.5/27 |
| Fork Span | b5 | 20, 50, 27 | 20, 50, 27 |
| Fork Width | e | 6.25 | 6.25 |
| Length Without Forks | I2 | 17.75 | 17.75 |
| Overall Length | I1 | 17.75 +I | 17.75 +I |
| Overall Height | h14 | 51 | 51 |
| Lowered Height | h13 | 3.35 | 3.35 |
| Load Centre | c | I / 2 | I / 2 |
| Wheel Base (l=45/48) | y | 49.5 | 49.5 |
| Gangway | Ast | 74.5* (pallet: 47x31.5) | 74.5* (pallet: 47x31.5) |
| Turning Angle of the Wheels | 210° | 210° | |
| Turning Radius Wa (I=45/48) | 55.5 | 55.5 | |
| Driving Motor - Speed control electronically Variable | 24V 1.2kW | 24V 1.2kW | |
| Driving Speed with/without load | 5/6 km/h | 5/6 km/h | |
| Pump Motor | 24V 1.2kW | 24V 1.2kW | |
| Lifting speed with/without load | 1.5" per sec/2" per sec | 1.5" per sec/2" per sec | |
| Lowering speed with/without load | 4.5" per sec/1.5" per sec | 4.5" per sec/1.5" per sec | |
| Gradient performance | 10% | 10% | |
| Weight in lbs. with 45" forks (without battery) | 451 | 451 | |
* Tests show that 63.5" are enough.
