POWERSTAK® FULLY POWERED STACKERS
PowerStak® Adjustable Straddle PPS2600 Series - Next Generation
The PowerStak® Next Generation 2600 Series of high performance, fully powered stackers offers significant performance advantages over manual stackers without a notable price premium. PowerStak 2600 Series Stackers provide flexibility and versatility. Whether used as a dedicated stacker, a combination stacker/work positioner, or as a transporter, these machines are designed with ergonomic features that help improve worker productivity.
Their sleek, stylish design, low overall weight, and quiet operation work well in a variety of environments including warehouses, loading docks, light assembly work cells, retail sales floors, and more.
The PPS2600 Series is available in Adjustable Straddle configurations for use with any type of pallet or skid, even closed bottom or Fork Over configurations for use with open bottom pallets or skids.
Three PPS2600 Series models are available with lifting heights of 62", 101", and 125". 62" lift models feature a narrow mast design for unmatched visibility.
- Powered Lift & Powered Drive
- 2,600 lb. Capacity at 24" Load Center
- AC Controller with CAN Bus system
- 1 KW AC Drive motor
- Polyurethane Drive Wheel and Polyurethane load wheels
- Lifting Heights: 62", 101", and 125"
- Turtle Speed for manuevering in tight quarters
- Belly Bump Auto Reversing Switch
- Adjustable Fork Carriage with Forged Steel Forks (straddle only)
- Ergonomic handle with pin code access and high-visibility battery status indicator
- Integral 115V Charger
PPS2600-62NAS - Narrow Mast with
Adjustable Straddle Base
PPS2600-101NAS & PPS2600-125NAS
Have Telescoping Masts

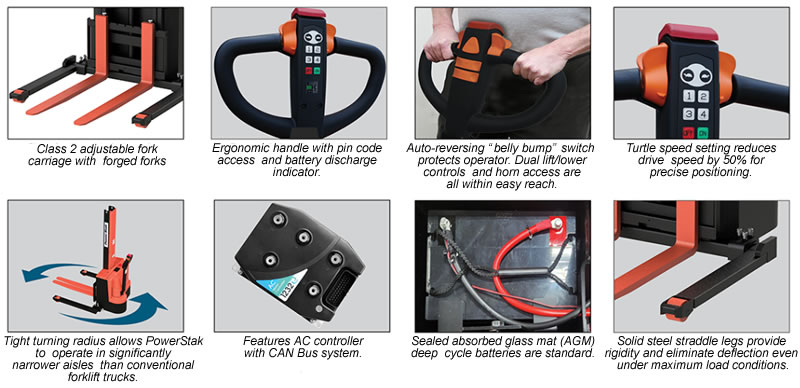

PowerStak® Next Generation PPS2600 Series Features:
POWERSTAK® STRADDLE DESIGN PRICES
| Model No. | Load Cap. | Raised Ht. | Lowered Ht. | Dim.: H x W x L | Fork O.D. | Fork Dimensions | Base/Legs I.D./O.D. |
Shipping Wgt. | Price |
| PPS Series - Adjustable Base - Straddle (40-50" I.D.) - 24" Load Center | |||||||||
| PPS2600-62NAS | 2600 lbs. | 62" | 2-3/4" | 79 x 48-58 x 68" | 12-1/2" - 27" | 4" x 42" | 40-48" / 50-58" | 1340 lbs | $9,918.90 |
| PPS2600-101AS | 2600 lbs. | 101" | 2-3/4" | 73 - 123 x 48-58 x 72" | 12-1/2" - 27" | 4" x 42" | 40-48" / 50-58" | 1585 lbs | $11,604.15 |
| PPS2600-125AS | 2600 lbs. | 125" | 2-3/4" | 85 - 147 x 48-58 x 73" | 12-1/2" - 27" | 4" x 42" | 40-48" / 50-58" | 1630 lbs | $12,262.20 |
OPTIONS
PowerStak units are available with these standard options. Other options may be available, however, not all
options shown are available for every PowerStak model. Please contact our Sales Department for details and pricing.
Load Backrests - 36" and 48" high, to help stabilize taller loads.
High-Traction Rubber Drive Wheel - for use on epoxy floors or any application requiring more traction.
Factory Set Travel Speed - Specify maximum travel speed from 1.2 to 3 MPH.
Adjustable Fork Lowering Speed - Adjustable control mounded on inside of cabinet.
LiFePO4, Lithium Iron Phosphate Battery - With battery management system and quick charge feature.
