4C HORIZONTAL MAILBOXES
RECESSED MOUNTED
Front/Rear Loading
|
|
|

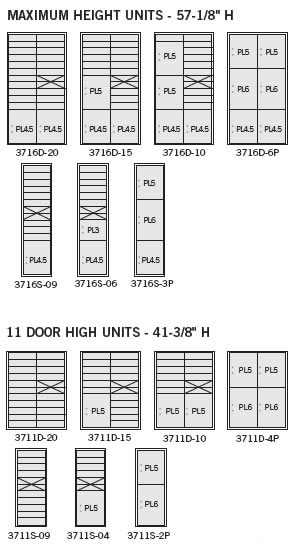

MAXIMUM HEIGHT UNITS - 57-1/8" H
|
|
Made of heavy duty aluminum and stainless steel
hardware, Salsbury 3700 series recessed mounted
4C horizontal mailboxes and parcel lockers are
U.S.P.S. approved and are available with standard
MB1 mailbox doors (12-3/4'' W x 3-1/4'' H).
All pre-numbered mailbox doors include a heavy
duty cam lock with a dust/rain shield and three
(3) keys. Recessed mounted 4C horizontal mailbox
units include factory installed 1'' W x 1/4'' D trim
and are available in configurations that are one door
wide (single column) and two (2) doors wide (double
column). The maximum height units (3716D-15)
have three (3) fully integrated parcel lockers
(2 PL4.5 and 1PL5) and fifteen (15) standard
MB1 mailbox doors and meet the U.S.P.S. 4C
requirement of one parcel locker for every five
(5) tenant compartments. Fully integrated and
stand-alone parcel lockers are available in heights
ranging from the equivalent of three (3) standard
MB1 mailbox doors (PL3 - 10-1/4" high) to six
(6) standard MB1 mailbox doors
(PL6 - 20-3/4" high). |
 |
|
 |
|
|

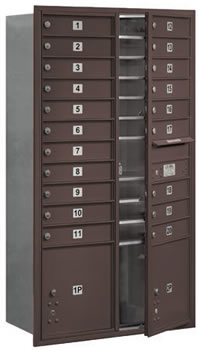

Model #3716D-20
Double Column
Front Loading
Color: Bronze
|
|

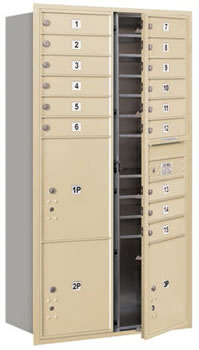

Model #3716D-15
Double Column
Front Load
Color: Sandstone
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Each unit includes a compartment for outgoing mail collection and is labeled "Outgoing Mail". The outgoing mail
compartment includes a weather protection flap and a 11-3/4'' W x 3/4'' H mail slot. Designed for indoor or
outdoor use, recessed mounted 4C horizontal mailboxes feature a durable powder coated finish available in four
(4) contemporary colors. |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 11 DOOR HIGH UNITS - 41-3/8" H |
|
10 DOOR HIGH UNITS* - 37-7/8" H |
|
 |
|
 |
|
|
 |
|
|
|

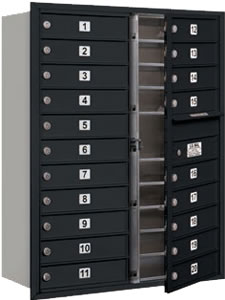

Model #3711D-20
Double Column
Front Load
Color: Black
|
|
Model #3711D-10
Double Column
Front Load
Color: Aluminum
|
|
|
|
|
|
|
|
Model #3710S-04
Single Column
Front Load
Color: Bronze
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6 DOOR HIGH UNITS* - 23-7/8" H
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
Note: The 3700 series recessed mounted 4C horizontal
mailboxes and parcel lockers have been USPS. approved
and meet the specifications of USPS-STD-4C. These units
are required for new construction and major renovations. |
|
|
|
|
|
|
|
|
|
|
|
 |
|
*All units meet ADA reach requirements when installed
with the tenant locks in the top row of mailboxes no more
than 48" above the finished floor and the bottom shelf of
the lowest row of mailboxes no less than 28" above the
finished floor. |
|
|
|
|
Model #3706D-10
Double Column
Front Load
Color: Sandstone |
|
|
|
|
|
|
|
|
|
|
|
|
#3710D-10 recessed mounted 4C horizontal mailboxes in
bronze finish with optional custom engraved placards (#3767) displayed
|
|
 |
|
|
|
| CLICK here to Access our 4C Mailbox Configurations |
Our 4C mailbox configurations file will assist in determining the ideal combination of mailboxes and parcel lockers
based on your specific requirements. This robust tool also allows you to customize 4C mailbox units and add
numbering sequences to drawings. Contact our sales department for assistance. |
|
|

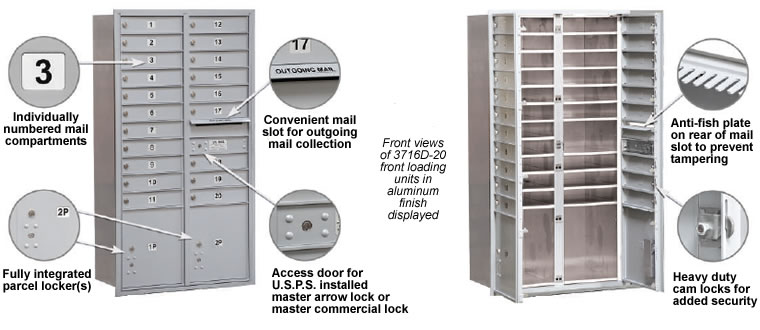

Front Loading
|
|
Front loading units include one or two (2) master door(s) that swing(s) on continuous integral hinges. The outgoing
mail compartment includes the access door and cannot be used for mail distribution. The rear of the unit incorporates
a solid rear cover. Note: U.S.P.S. standard 4C requires a minimum of one parcel locker for every five (5) tenant
compartments. Parcel lockers are not required for installation sites with less than five (5) tenant compartments. |
|
 |
|
| CLICK here to Access our 4C Mailbox Configurations |
Our 4C mailbox configurations file will assist in determining the ideal combination of mailboxes and parcel lockers
based on your specific requirements. This robust tool also allows you to customize 4C mailbox units and add
numbering sequences to drawings. Contact our sales department for assistance. |
|
| When Ordering: |
|
|
² Specify - front loading (FL) or rear loading (RL) -
(add 25% upcharge for rear loading (RL) units) |
 |
|
|
|
|
³ Specify - U.S.P.S. access or private access (order
#3775 master commercial lock for private access on
FL units and PL's) |
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
PRICES FOR 4C HORIZONTAL MAILBOXES
|
|
Model No.
|
Description
|
Size
|
Weight
|
Price
|
|
Max Height Units - 57-1/8" H (Max Allowable Height)
|
|
|
20 MB1 Doors and 2 Parcel Lockers (PL4.5's)
|
31-1/8"W x 16-1/2"D
|
170 lbs
|
$3,708.00
|
|
|
15 MB1 Doors and 3 Parcel Lockers (PL4.5's, PL5)
|
31-1/8"W x 16-1/2"D
|
160 lbs
|
$3,445.00
|
|
|
10 MB1 Doors and 4 Parcel Lockers (PL4.5's, PL5's)
|
31-1/8"W x 16-1/2"D
|
150 lbs
|
$3,183.00
|
|
|
6 Parcel Lockers (PL4.5's, PL5's, PL6's)
|
31-1/8"W x 16-1/2"D
|
145 lbs
|
$2,520.00
|
|
|
9 MB1 Doors and 1 Parcel Locker (PL4.5)
|
17"W x 16-1/2"D
|
85 lbs
|
$1,830.00
|
|
|
6 MB1 Doors and 2 Parcel Lockers (PL3, PL4.5)
|
17"W x 16-1/2"D
|
85 lbs
|
$1,728.00
|
|
|
3 Parcel Lockers (PL4.5, PL5, PL6)
|
17"W x 16-1/2"D
|
80 lbs
|
$1,273.00
|
|
11 Door High Units - 41-3/8" H (Equivalent to 11 Standard Mailbox Doors (MB1) High)
|
|
|
20 MB1 Doors - no Parcel Lockers
|
31-1/8"W x 16-1/27"D
|
145 lbs
|
$2,975.00
|
|
|
15 MB1 Doors and 1 Parcel Locker (PL5)
|
31-1/8"W x 16-1/27"D
|
135 lbs
|
$2,712.00
|
|
|
10 MB1 Doors and 2 Parcel Lockers (PL5's)
|
31-1/8"W x 16-1/27"D
|
135 lbs
|
$2,450.00
|
|
|
4 Parcel Lockers (PL5's, PL6's)
|
31-1/8"W x 16-1/27"D
|
130 lbs
|
$1,814.00
|
|
|
9 MB1 Doors no Parcel Lockers
|
17"W x 16-1/2"D
|
75 lbs
|
$1,477.00
|
|
|
4 MB1 Doors and 1 Parcel Locker (PL5)
|
17"W x 16-1/2"D
|
75 lbs
|
$1,214.00
|
|
|
Stand-alone 2 Parcel Lockers (PL5, PL6)
|
17"W x 16-1/2"D
|
65 lbs
|
$893.00
|
10 Door High Units - 37-7/8"H (Equivalent to 10 Standard Mailbox Doors (MB1) High)
|
|
|
10 MB1 Doors and 2 Parcel Lockers (PL4, PL4.5)
|
31-1/8"W x 16-1/27"D
|
130 lbs
|
$2,343.00
|
|
|
9 MB1 Doors and 2 Parcel Lockers (PL4.5, PL5)
|
31-1/8"W x 16-1/27"D
|
130 lbs
|
$2,263.00
|
|
|
6 MB1 Doors and 2 Parcel Lockers (PL6's)
|
31-1/8"W x 16-1/27"D
|
125 lbs
|
$2,022.00
|
|
|
4 Parcel Lockers (PL5's)
|
31-1/8"W x 16-1/27"D
|
120 lbs
|
$1,680.00
|
|
|
4 MB1 Doors and 1 Parcel Locker (PL4.5's)
|
17"W x 16-1/2"D
|
75 lbs
|
$1,161.00
|
|
|
3 MB1 Doors and 1 Parcel Locker (PL5)
|
17"W x 16-1/2"D
|
70 lbs
|
$1,081.00
|
|
|
2 Parcel Lockers (PL5)
|
17"W x 16-1/2"D
|
65 lbs
|
$840.00
|
6 Door High Units - 23-7/8" H(Equivalent to 6 Standard Mailbox Doors (MB1) High)
|
|
|
10 MB1 Doors - no Parcel Locker
|
31-1/8"W x 16-1/27"D
|
90 lbs
|
$1,610.00
|
|
|
9 MB1 Doors - no Parcel Locker
|
31-1/8"W x 16-1/27"D
|
90 lbs
|
$1,477.00
|
|
|
5 MB1 Doors and 1 Parcel Lockers (PL5)
|
31-1/8"W x 16-1/27"D
|
85 lbs
|
$1,348.00
|
|
|
2 Parcel Lockers (PL6's)
|
31-1/8"W x 16-1/27"D
|
80 lbs
|
$947.00
|
|
|
4 MB1 Doors - no Parcel Locker
|
17''W x 16-1/2"
|
50 lbs
|
$781.00
|
|
|
3 MB1 Doors - no Parcel Locker
|
17''W x 16-1/2"
|
50 lbs
|
$647.00
|
|
|
1 Parcel Locker (PL6)
|
17''W x 16-1/2"
|
45 lbs
|
$487.00
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
SPARE PARTS & OPTIONS PRICES
|
|
Model No.
|
Description
|
Prices
|
|
|
MB1 replacement door and lock with (3) keys; 3-1/4"H x 12-3/4" W
|
$107.00
|
|
|
MB2 replacement door and lock with (3) keys; 6-3/4"H x 12-3/4" W
|
$117.70
|
|
|
MB3 replacement door and lock with (3) keys; 10-1/4"H x 12-3/4" W
|
$128.40
|
|
|
PL3 replacement door and lock with (2) keys; 10-1/4"H x 12-3/4" W
|
$171.20
|
|
|
MB4 replacement door and lock with (3) keys; 13-3/4"H x 12-3/4" W
|
$139.10
|
|
|
PL4 replacement door and lock with (2) keys; 13-3/4"H x 12-3/4" W
|
$181.90
|
|
|
PL4.5 replacement door and lock with (2) keys; 15-1/2"H x 12-3/4" W
|
$187.25
|
|
|
Replacement PL5 door and tenant lock
|
$192.60
|
|
|
Replacement PL6 door and tenant lock
|
$203.30
|
|
3766
|
Custom finishes (minimum order of 100 doors) - Specify Color
|
$21.40
|
|
3767
|
Custom engraved placard - for 4C horizontal mailbox doors and
parcel lockers; 1-1/2"H x 1-3/4"W
|
$3.21
|
|
3768
|
Custom engraved door - regular - for 4C horizontal mailbox doors
and parcel lockers
|
$5.35
|
|
|
Mails slots - Standard slot size; 10"W x 3/4"H
|
$5.35
|
|
|
Outgoing mail slot plug kit
|
$37.45
|
|
|
Plexiglass window; 1-1/8"W x 7/8"H
|
$3.21
|
|
3774
|
Custom engraved door - black filled - for 3700 series mailbox doors
and parcel lockers
|
$5.35
|
|
|
Master commercial lock-for front loading mailbox units and parcel lockers
- if for private access - w/2 Keys
|
$64.20
|
|
|
Tenant Parcel Locker lock - with (3) keys
|
$53.50
|
|
|
Combination lock
|
$37.45
|
|
|
Set of (5) #3790 Locks - standard replacement for 3700 series doors
- with three (3) keys
|
$139.10
|
|
|
Additional keys per lock when ordering
|
$5.35
|
|
|
Key blanks - for standard 3700 series locks - box of (50)
|
$64.20
|
|
