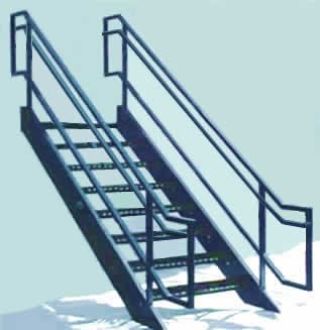

The FS Industries IRB3698-P-C is an IBC industrial type structural steel stairway with internal handrails. It conforms to IBC Groups F, H, I3 and S for industrial/commercial uses, as well as OSHA 1910.25. It fits an 8'-0" to 8'-5" floor to floor height, with a 13'-2" to 14'-2" horizontal run at a nominal 32 degree angle (7/11 rise/run). Its 36" wide diamond plate treads are 11" deep with open risers, for a 39" overall width.
The frame is polyester powder coated in gray, black, blue, white or safety yellow, with the treads powder coated to match. It has 36" high inboard handrails and 42" high guardrails.
Specify the actual floor to floor height when ordering. Please note: a drawing will be emailed to you for your approval prior to fabrication.
