X5 SERIES LEVER CHAIN HOISTS
3/4 to 10 US Ton Capacity
FEATURES
- Final assembly and load test in the USA
- Brake sets and operates without minimum preload
- Ultimate strength is 5 X Working Load Limit, meeting ASME HST-3 Appendix A,
for marine and other US Department of Defense (DOD) applications - 100% inspection and hook replacement are permitted by bolted hook blocks
- Weston style mechanical load brake is self-adjusting with double pawls,
- asbestos-free brake discs and is surrounded by an enclosure to limit contamination.
- Fused break disc cannot crack, shatter, or absorb moisture
- Precision hoist load chain with strength of G100 chain made in Japan or EU
- Ambient Temperature range -40° F to +140° F (-40° C to +60° C)
OPTIONS
- Overload protection – one way directional slip clutch to ensure any load can be lowered
- Any Chain Length
- Shipyard Hook (Available for 1-3/4 & 3-1/2T)
- Self-locking hooks (Available for 1-1/8, 1-3/4 & 3-1/2T)
- Top Hook Extender Kit
X5S™ ADDITIONAL SUBSEA MODEL FEATURES
- SubSea models for use submerged under water.
- Brake is enclosed in a gasket sealed area along with
bolted-in stainless dual springs and pawls. - Meets IMCA D028 standard (UK sub-sea lever hoist standard).
- Extensive coatings, finishes and materials to resist corrosion.
- Fitted with an adjustable chain stop to meet local codes
for use under water.
Adjustable Stop

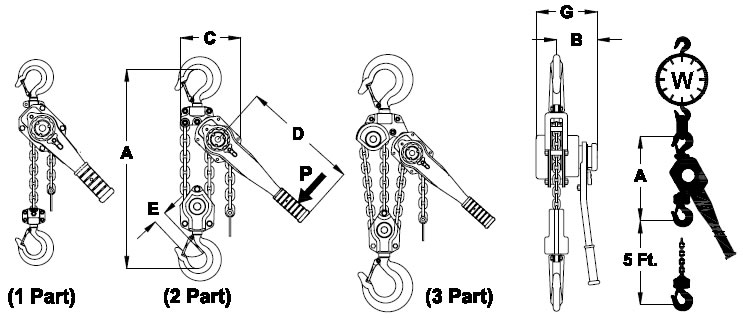

| Working Load Limit (WLL) | Specifications (inches and pounds) | |||||||||
| Base Model |  US Ton |
Chain Grade 100 |
Parts | A" Min. |
B" | C" | D" | E" w/Latch |
G" | P (lbs) |
| X5L02250 | 3/4 to 1 1/8 | C5.6H17Z | 1 | 11.8 | 3.9 | 4.7 | 9.6 | 0.9 | 5.9 | 52 |
| X5SL02250 | 1 | 11.8 | 3.9 | 4.7 | 9.6 | 0.9 | 5.9 | 52 | ||
| X5L03528 | 1 1/2 to 1 3/4 | C7.1H20Z | 1 | 13.2 | 4.1 | 5.0 | 10.4 | 1.2 | 6.6 | 72 |
| 0X5SL03528 | 1 | 13.2 | 4.1 | 5.0 | 10.4 | 1.2 | 6.6 | 72 | ||
| X5L07056 | 3 to 3 1/2 | C10H28Z | 1 | 15.6 | 4.6 | 6.3 | 16.3 | 1.3 | 7.9 | 84 |
| X5SL07056 | 1 | 15.6 | 4.6 | 6.3 | 16.3 | 1.3 | 7.9 | 84 | ||
| X5L14000 | 6 to 7 | C10H28Z | 2 | 21.3 | 4.6 | 8.6 | 16.3 | 1.6 | 7.9 | 86 |
| X5SL14000 | 2 | 21.3 | 4.6 | 8.6 | 16.3 | 1.6 | 7.9 | 86 | ||
| X5L20000 | 9 to 10 | C10H28Z | 3 | 26.8 | 4.6 | 11.7 | 16.3 | 2.1 | 7.9 | 88 |
| X5SL20000 | 3 | 26.8 | 4.6 | 11.7 | 16.3 | 2.1 | 7.9 | 88 | ||
Standard lift = 5, 10, 15 and 20 Ft. Custom lifts are available at no extra charge
Order by descriptive model number,
| Base Model | Lift | Options (Not available for SubSea Models) | |
| Example: | X5L07056- | 05 | VS |
| V = Overload Protection, one-way operation will lower any load | |||
| S = Shipyard Hooks includes top and bottom (Available for 1 3/4 & 3 1/2T) | |||
| L = Self-Locking Hooks includes top and bottom (Available for 1 1/8, 1 3/4 & 3 1/2T) |
PRICING FOR X5 SERIES LEVER CHAIN HOIST
| Model No. | US Ton | Chain Grade 100 |
Parts | Lift | Base Price | L Option | V Option | S Option |
Load Chain |
Weight lbs/ft |
Wgt. Of 5' Lift (lbs) |
| X5L02250-5 | 3/4 to 1 1/8 | C5.6H17Z | 1 | 5' | $436.43 | $687.30 | $544.88 | - | $13.35 | 0.5 | 13.5 |
| X5L02250-10 | 10' | $501.77 | $752.63 | $610.22 | - | 16 | |||||
| X5L02250-15 | 15' | $567.10 | $817.97 | $675.55 | - | 18.5 | |||||
| X5L02250-20 | 20 | $632.43 | $883.30 | $740.88 | - | 21 | |||||
| X5L03528-5 | 1 1/2 to 1 3/4 | C7.1H20Z | 1 | 5' | $522.67 | $797.07 | $631.12 | $671.63 | $17.35 | 0.7 | 18.0 |
| X5L03528-10 | 10' | $607.60 | $882.00 | $716.05 | $756.57 | 21.5 | |||||
| X5L03528-15 | 15' | $692.53 | $966.93 | $800.98 | $841.50 | 25 | |||||
| X5L03528-20 | 20 | $777.47 | $1,051.87 | $885.92 | $926.43 | 28.5 | |||||
| X5L07056-5 | 3 to 3 1/2 | C10.1H28Z | 1 | 5' | $836.27 | $1,432.10 | $944.72 | $1,089.77 | $25.48 | 1.5 | 36.5 |
| X5L07056-10 | 10' | $960.40 | $1,556.23 | $1,068.85 | $1,213.90 | 44 | |||||
| X5L07056-15 | 15' | $1,084.53 | $1,680.37 | $1,192.98 | $1,338.03 | 51.5 | |||||
| X5L07056-20 | 20 | $1,208.67 | $1,804.50 | $1,317.12 | $1,462.17 | 59 | |||||
| X5L14000-5 | 6 to 7 | C10.1H28Z | 1 | 5' | $1,466.08 | - | $1,574.53 | - | $25.48 | 3.2 | 55.0 |
| X5L14000-10 | 10' | $1,714.35 | - | $1,822.80 | - | 70 | |||||
| X5L14000-15 | 15' | $1,962.62 | - | $2,071.07 | - | 85 | |||||
| X5L14000-20 | 20 | $2,210.88 | - | $2,319.33 | - | 100 | |||||
| X5L20000-5 | 9 to 10 | C10.1H28Z | 1 | 5' | $2,567.60 | - | $2,676.05 | - | $25.48 | 4.7 | 90.0 |
| X5L20000-10 | 10' | $2,940.00 | - | $3,048.45 | - | 112.5 | |||||
| X5L20000-15 | 15' | $3,312.40 | - | $3,420.85 | - | 135 | |||||
| X5L20000-20 | 20 | $3,684.80 | - | $3,793.25 | - | 157.5 |
Standard lift = 5, 10, 15 and 20 Ft. Custom lifts are available at no extra charge
Option V = Overload Protection, one-way operation will lower any load
Option S = Shipyard Hooks includes top and bottom (Available for 1 3/4 & 3 1/2T)
Option L = Self-Locking Hooks includes top and bottom (Available for 1 1/8, 1 3/4 & 3 1/2T)
