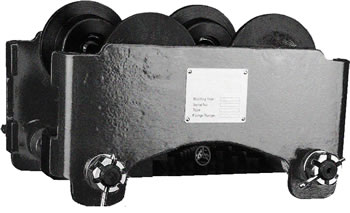

PTL & GTL ARMY STYLE LOW HEADROOM TROLLEY
1/2 to 10 Metric Ton Capacity
FEATURES
- Low headroom design increases lift height in low ceiling areas.
- Direct mount to any standard MA model AMH hoist by replacing
the top hook assembly with the low headroom trolley assembly. - Durable all steel construction.
- Machined cast iron wheels with precision sealed "lubed for life"
bearings and universal tread design to fit flat or tapered
beam flanges. - Standard hand chain drop is 20 feet.
- Meets: ASME/ANSI B30.16, OSHA, NASA-STD-8719.9.
- ATEX rated (εx) 3 GD c 11B 540° X for limited use in
hazardous environments. - Options: Extended hand chain drop.
Note: Hoist Not Included and must be ordered separately
Prices for Army Geared Trolley
| Model No. | Capacity (Ton) |
Wt. w/20' Drop | Flange Adjustment (in.) | Price | Wt. Drop Lbs./ft. |
Extra Drop (per ft.) |
| GTL005-20 | 1/2 | 22 | 1.97 - 7.99 | $518.70 | .38 | $3.43 |
| GTL010-20 | 1 | 35 | 2.52 - 12.01 | $669.37 | .38 | $3.43 |
| GTL020-20 | 2 | 68 | 3.46 - 12.01 | $1,031.23 | .38 | $3.43 |
| GTL030-20 | 3 | 71 | 3.94 - 12.01 | $740.12 | .38 | $3.43 |
| GTL050-20 | 5 | 114 | 4.49 - 12.01 | $2,365.03 | .38 | $3.43 |
| GTL075-20 | 7-1/2 | 216 | 4.90 - 12.01 | $2,862.73 | .38 | $3.43 |
| GTL100-20 | 10 | 216 | 4.90 - 12.01 | $2,862.73 | .38 | $3.43 |
Prices for Army Push Type Trolley
| Model No. | Capacity (Ton) |
Flange Adjustment (in.) | Price | Weight (lbs) |
| PTL005 | 1/2 | 1.97 - 7.99 | $732.35 | 12 |
| PTL010 | 1 | 2.52 - 12.01 | $959.60 | 26 |
| PTL020 | 2 | 3.46 - 12.01 | $1,365.92 | 59 |
| PTL030 | 3 | 3.94 - 12.01 | $2,053.80 | 60 |
| PTL050 | 5 | 4.49 - 12.01 | $2,857.78 | 103 |
| PTL075 | 7-1/2 | 4.90 - 12.01 | $3,275.22 | 206 |
| PTL100 | 10 | 4.90 - 12.01 | $3,275.22 | 206 |
