FSS Series Heavy Duty Emitter Elec. Overhead Infrared Heater
FSS Series Heavy Duty Flat Panel Emitter Electric Overhead Infrared Heater
Heavy Duty Overhead Infrared Heaters for Indoor Spot Heating, Zone, or Total Area Heating Applications
• High-density, medium wavelength radiant heat, with 60° symmetric heat pattern. • Flat panel emitter operates at a radiant efficiency of 78.5%. • Non-glare, uniform heat generating directional heat pattern. • Rugged steel structure surrounds emitter element, great for high vibration areas. • Gold anodized aluminum housing for efficient, long term reflectivity & corrosion resistance. • Single or three phase wiring on select models. • "L" brackets included for chain suspension, or rigid mounting. • Field wiring box mounted on each heater. • Heavy duty wire guard factory installed. • 25,000 hour element life expectancy. • Shipped fully assembled • Made in U.S.A.
Suspension Heating Application
Spot Indoor Heaters
• Directional heating systems for where and when you need it. • No element glare. • No glass materials. • Rigid housing & element structure. • Designed for rugged & dirty environments. • Delivers higher and more uniform heat output with less energy consumption. • Ideal spot heating system for high- bay buildings up to 24’.
Product Specifications
Housing & Construction: .040 Gold anodized Aluminum housing for efficient, long-term reflectivity and corrosion resistance. High-density radiant heat. Housing is ETL Listed for indoor, dry environment applications only. Made in U.S.A.
Elements: Heavy duty flat panel emitter. Available wattages in 1450, 3150, 4300 and 9500 Watts per element. Available in standard voltages from 120 to 600 Volts.
Reflector: 60 degree symmetric heat pattern, reference the sizing chart to determine overall coverage based on the mounting height.

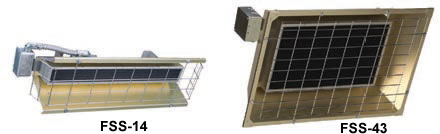

FSS Series Dimensions
MODEL NUMBER
“A" DEPTH
“B" WIDTH
“C" LENGTH
FSS-14
8 1/2
9
26
FSS-31
8 1/2
9
46
FSS-43
9 3/4
20
29
FSS-95
7 3/4
20
49
FSS-95 TANDEM
7 3/4
20
108
Order Online
Click the button of the item you wish to purchase.
24" from ceiling 36" from vertical surface & from another heater 72" from face of heater to combustible surface
1.4
8' - 10'
3.1
8' - 12'
4.3
10' - 14'
9.5
12' - 16'
FSS-95 Tandem Only
87" from face of heater to combustible surface
(2) 9.5
15' - 30"
SIZING CHART
MOUNTING HEIGHT
MODEL NUMBER
LENGTH
WIDTH
COVERAGE (SQ. FT.)
WATTS (SQ. FT.)
8'
FSS-14
8
8
64
22.7
FSS-31
9
8
72
43.8
10'
FSS-14
11
10
110
13.2
FSS-31
11
10
110
28.6
FSS-43
12
10
120
35.8
12'
FSS-31
12
11.5
138
22.8
FSS-43
14
12
168
25.6
FSS-95
15
13
195
48.7
14'
FSS-43
16
14
224
19.2
FSS-95
18
16
288
33
16'
FSS-43
18
16
288
14.9
FSS-95
21
18
378
25.1
FSS-95 TANDEM
24
19
456
41.7
18'
FSS-95
23
20
460
20.7
FSS-95 TANDEM
28
20
560
33.9
20'
FSS-95 TANDEM
28
23
644
29.5
24'
FSS-95 TANDEM
33
27
891
21.3
30'
FSS-95 TANDEM
41
32
1312
14.5
