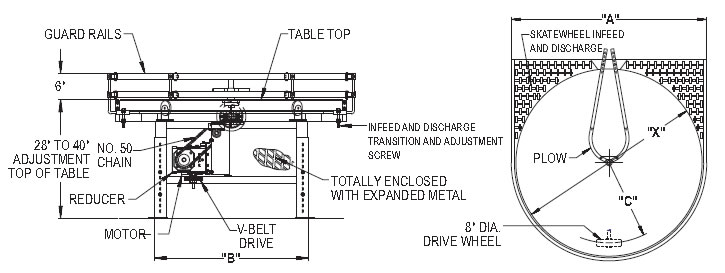

The
Powered Turntable is used when
two parallel conveyor lines must be close
together with a 180° turn at one (or both)
ends. The turning radius is held to a mini-
mum, less than would be available with
gravity or powered curve sections. Turn-
table Plow and Guard Rails insure product
safety while negotiating 180° turn. Unit is
reversible and all bearings are sealed.
Table top speed at drive wheel is 190 FPM.
•
Capacity-500 lbs. Total Distributed Load.Maximum
Unit Load.150 lbs.
• 28 in. to 40 in. Adjustable Top of Table
• Motor-1/2 HP-230/460V-3 Ph.-60Hz.
• Chain-driven Free-floating Drive Wheel 190
• FPM Standard Speed (Refers to linear
speed at centerline of drive wheel)
• Turntable Top NOT Painted
• Less Electrical Controls
PRODUCT
SPECIFICATIONS REQUIRED
PRODUCT ORIENTATION COULD BE AFFECTED
