The
Tri-Glide provides a stable, efficient solution for
moving heavy loads over finished floors. It is designed
with a large footprint to spread the weight of the load
over a greater area. Our Polyurethane and Nylon rollers
are non-marking and can be used on a variety of floor
surfaces. The Tri-Glide low-profile keeps the load close
to the ground for safe moving.
All
Tri-Glide Systems contain one steerable front unit
and two adjustable-width rear units.

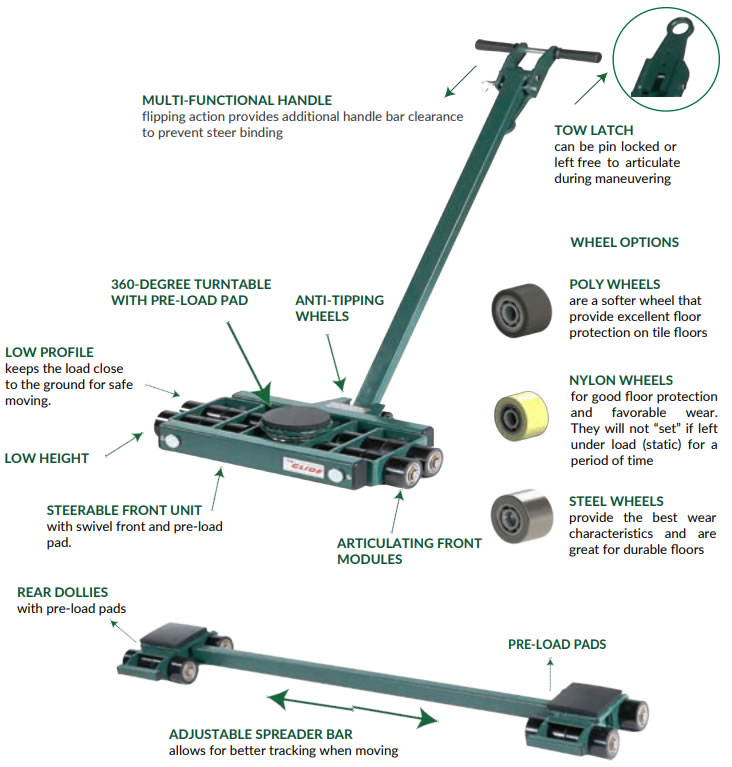

FEATURES
•
Low height - just 4 inches on 10,15 & 20 ton units
• Multi-functional Handle - flipping action provides
additional handle bar clearance to prevent steer
binding
• Tow Latch - can be pin locked or left free to
articulate during maneuvering
• 360-Degree Turntable with Non-Slip Swivel Pad-for
easy turning
3-POINT
MOVING SYSTEM
Placing
the dollies in a 3-point configuration can stabilize the rollers
and prevent them from slipping out, even under
pulling and tugging forces.
Easy
Maneuverability, Maintenance Friendly,
Easy to Assemble, No Tools Required!
KTG-10N
KTG-15N
KTG-20N
-
-
KTG-10P
KTG-15P
KTG-20-P
KTG-24P
KTG-40P
KTG-10S
KTG-15S
KTG-20S
-
-
Load
Capacity:
10 ton
15 ton
20 ton
24 ton
40 ton
Wheels
in Front Unit:
8
12
16
8
16
Wheels
in Rear Unit:
8
12
16
8
16
Height
Without Pad:
4"
4"
4"
5.25"
5.25"
Handle
Length:
43 1/2"
43 1/2"
43 1/2"
45 3/4"
45 3/4"
Front
Unit Width:
17 7/8"
22 11/16"
26 11/16"
26 7/8"
39 3/16"
Rear
Unit Width:
6 1/4"
7 11/16"
9 11/16"
8 1/4"
14 3/16"
Front
Unit Weights:
115 lb
145 lb
151 lb
253 lb
131 lb
Rear
Unit Weights:
78 lb
91 lb
109 lb
291 lb
201 lb
