10'
HIGH WELDED 8 GAUGE
WIRE PARTITION SYSTEM
|
|
(10'-3
1/2" OVERALL HEIGHT)
|
|
|
Select
Your Own Partition Components. See "HOW TO ORDER"
Below
OR SEND US YOUR SKETCH AND WE WILL DO IT FOR YOU!
|
| PRODUCT
FEATURES |
|
•
Standard and custom sizes: We have panel, ceiling, door
and lock options and configurations to meet a broad
range of materials and security needs.
• Available now: The most popular sizes are available
to ship within 48 hours.
• 5x faster installation: Our patented hook and
drive pin design easily drops and locks in place with no nuts
and bolts needed.
• Designed for higher security: Our interior panel-to-post
attachments provide better level of security than
standard (bolted) wire partitions.
• Top quality materials: Posts are fabricated with
2.5" x 2.5" 16-gauge steel. Panels are 8-gauge 2"
x 2"
welded wire with added fluting to provide rigidity.
• Color: Black |
|
| PATENTED
HOOK FASTENER |
|
 |
|
|
|
| HOW
TO ORDER: |
|
|
|
 |
|
1) Refer to the
assembly configuration drawing below
to understand what material you need
to select to
create your partition. Basically posts,
panels, doors.
|
|
2)
Make a simple one line sketch of your partition
dimensions such as: ---------------> |
|
3)
Use a post between all panels which are 4' high
and are stacked 2 high to make the 8' height.
The
4' high panels can be selected in different
lengths
to make up the desired overall length of
your
partitions. |
4)
Use corner posts each time that your partition
changes direction. |
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
PRICING
|
|
Model # |
Photos |
Description - L x H
|
Lbs. |
Kit Lbs. |
Total Lbs. |
Price Ea. |
| PANELS
|
|
|
 |
PANEL, WELDED WIRE 1 X 5
|
10.34
|
0.04
|
10.38
|
$90.50
|
|
|
PANEL, WELDED WIRE 2 X 5
|
15.57
|
0.04
|
15.61
|
$95
|
|
|
PANEL, WELDED WIRE 3 X 5
|
20.45
|
0.04
|
20.49
|
$120.60
|
|
|
PANEL, WELDED WIRE 4 X 5
|
25.34
|
0.04
|
25.38
|
$146.80
|
|
|
PANEL, WELDED WIRE 5 X 5
|
30.22
|
0.04
|
30.26
|
$172.90
|
|
|
PANEL, WELDED WIRE 6 X 5
|
38.49
|
0.04
|
38.53
|
$192.10
|
|
|
PANEL, WELDED WIRE 7 X 5
|
43.38
|
0.04
|
43.42
|
$219.50
|
|
|
PANEL, WELDED WIRE 8 X 5
|
48.26
|
0.04
|
48.30
|
$242.40
|
SINGLE SWING DOORS 7' W/TRANSOM - "Looking from the
outside of cage is hinge on left or right swing out towards
you
(HLSO or HRSO)" |
| V220310-091 |
|
SWING
DOOR, 3X10, HLSO |
60.84
|
1.70
|
62.54
|
$601.10
|
| V220310-094 |
SWING
DOOR, 3X10, HRSO |
| V220410-091 |
SWING
DOOR, 4X10, HLSO |
64.10
|
1.70
|
65.80
|
$670.30
|
| V220410-094 |
SWING
DOOR, 4X10, HRSO |
|
DOUBLE HINGE DOORS |
|
|
|
DOOR, 6X10, DBL HINGE
|
133.99
|
1.86
|
135.85
|
$1,590.40
|
|
|
DOOR, 8X10, DBL HINGE
|
157.73
|
1.86
|
159.59
|
$1,783.20
|
|
Model # |
Description - L x H |
Description - L x H |
Lbs. |
Kit Lbs. |
Total Lbs. |
Price Ea. |
|
DOUBLE SLIDE DOORS |
|
|
 |
DOOR, 8X10, DBL SLIDE
|
135.14
|
25.29
|
160.43
|
$2,447.80
|
|
|
DOOR, 10X10, DBL SLIDE
|
157.81
|
25.29
|
183.10
|
$2,469
|
|
SINGLE SLIDE DOORS |
| V540310 |
 |
DOOR, 3X10, SINGLE SLIDE
|
56.87
|
19.76
|
76.63
|
$1,233.30
|
| V540410 |
DOOR, 4X10, SINGLE SLIDE
|
64.90
|
19.76
|
84.66
|
$1,280.60
|
| V540510 |
DOOR, 5X10, SINGLE SLIDE
|
76.24
|
19.76
|
96.00
|
$1,327.20
|
| V540610 |
DOOR, 6X10, SINGLE SLIDE
|
109.91
|
21.71
|
131.62
|
$1,778.90
|
| V540810 |
DOOR, 8X10, SINGLE SLIDE
|
134.29
|
21.71
|
156.00
|
$1,893.60
|
| V541010 |
DOOR, 10 X 10, SINGLE SLIDE
|
158.67
|
21.71
|
180.38
|
$2,011
|
|
FILL-A-GAP PANELS |
| V6610 |
~ |
PANEL,EZ WIRE 1'X10'
FILL-A-GAP
|
20.75
|
0.15
|
20.90
|
$145.10
|
|
CORNER POSTS |
| V5610 |
|
POST, CORNER, 10'
|
20.73
|
0.61
|
21.34
|
$167
|
| LINE
POSTS |
|
|
 |
POST, LINE, 10'
|
22.64
|
0.61
|
23.25
|
$177.80
|
|
|
POST, 3-WAY, 10'
|
32.53
|
0.61
|
33.14
|
$304.30
|
|

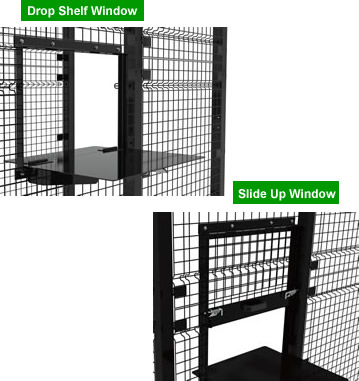

WINDOWS & ACCESSORIES |
|
|
See
Below |
DROP
DOWN SHELF |
24.33
|
0.06
|
24.39
|
$651.40
|
|
|
SLIDE
DOWN WINDOW |
38.00
|
0.06
|
38.06
|
$1,033.50
|
|
|
|
|
| PANELS
- UNLIMITED CONFIGURATION OPTIONS |
|
 |
|
| PANEL
HEIGHT OPTIONS |
| Panels
can be configured for 8' or 10' high cages |
|
 |
|
|
DOORS |
|
|
Keep
your workplace safe and secure
|
|
| Doors
are available in 8' and 10' height configurations |
|
 |
|
 |
|
| LATCHES
& LOCKS |
|
 |
|
| SHELVES |
|
|
|
|
|
POSTS |
|
|
|
|
|
|
All
posts are constructed with 2½" x 2½",
16-gauge tube
with 3/8" thick baseplate |
 |
|
|
|
|
|
|
 |
|
