MODEL CPP PIPE PICK™
The patented Pipe Pick™ is a quicker, safer,
and cleaner way of handling precast concrete
pipe.
PRODUCT FEATURES:
• Simple and fast
• No need to reach inside the pipe
• Worker remains above the pipe at all times
The bigger the job, the more you’ll like the Pipe Pick™.
pipe pick
Patent No. 5,820,186

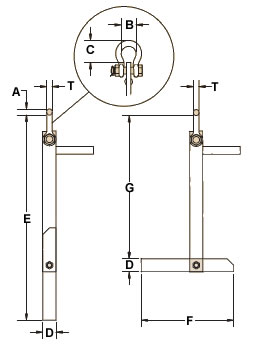

pipe lifter drawing

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICING AND SPECIFICATIONS
Model
No.		 Cap. in
Tons		 Min.
Pipe I.D.		 Dimensions in Inches Wgt.
(lbs.)		 Price
D E F G A B C T

CPP-1.5		 1-1/2 12 1.5 23.5 10.25 16.25 0.69 1.69 2.5 0.63 10

CPP-3		 3 14 2 28.5 12.00 20.50 0.81 2.00 2.88 0.75 18

CPP-5		 5 16 2.75 44.0 13.5 36.13 1.06 2.69 4.00 1.00 46
Simply insert the Pipe Pick™ into the lifting hole in the pipe — tilt — to engage
the beveled edge — and lift up! You can now lift and set the pipe.
pipe pick
To remove the Pipe Pick™ once the pipe is set, lower the Pipe Pick™; the counter weighted
lift arm automatically falls straight and the Pipe Pick™ can be removed from the pipe.
pipe pick
