Model RL
Reel Lifter
The Model RL Reel Lifter will help you handle reels of wire, cable better during loading, transporting, or on-site dispensing.
PRODUCT FEATURES
- Rugged construction to lift and upend reels
- Bearing included for easy rotation to unroll cable
- One crane attachment point for both lifting and upending
- Optional oblong can be added for large crane hooks
- Special long arm option to lift and upend from outer flange
- Bottom arm counterweighted for easy insertion in reel
- Pull lanyard for pivoting bottom arm to lift

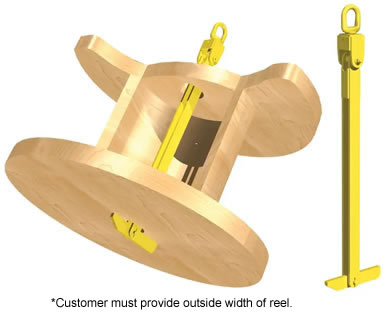

Long Arm Option:
- To prevent reel separation during lifting*
Oblong Option:
- To accommodate larger lifting hooks
| Dimensions (in.) | ||||
| Model Number | F | G | H | I |
| RL-.25 | 0.5 | 2.8 | 4.75 | 6.9 |
| RL-1.5 | 0.5 | 2.8 | 4.75 | 6.9 |
| RL-3 | 0.75 | 3.2 | 5.25 | 8.7 |
| RL-5.5 | 1 | 4.3 | 7 | 11 |
PRICING & DIMENSIONS FOR MODEL RL REEL LIFTER
| Model No. |
Rated Cap. (tons) |
Dimensions (in.) | Weight (lbs.) |
Price | ||||||||
| Arbor Hole | Min. Drum I.D. |
Max. Flange Thickness |
A | B | C | D | E | |||||
| Min. | Max. | |||||||||||
| RL-.25* | 1/4 | 1.25 | 2 | 5.5 | 2 | 0.5 | 1.5 | 1.92 | 12.5 | 5 | 5 | $947.30 |
| RL-1.5* | 1-1/2 | 2 | 4 | 10 | 3 | 0.5 | 1.5 | 1.92 | 14.44 | 8.5 | 8 | $1,088.50 |
| RL-3* | 3 | 3 | 5 | 13 | 4 | 0.75 | 2 | 2.63 | 17.38 | 11 | 17 | $1,326.50 |
| RL-5.5* | 5-1/2 | 4 | 6 | 16 | 5 | 1 | 2.5 | 3.5 | 22.19 | 14 | 25 | $1,672.00 |
*IN STOCK
